— 41 —

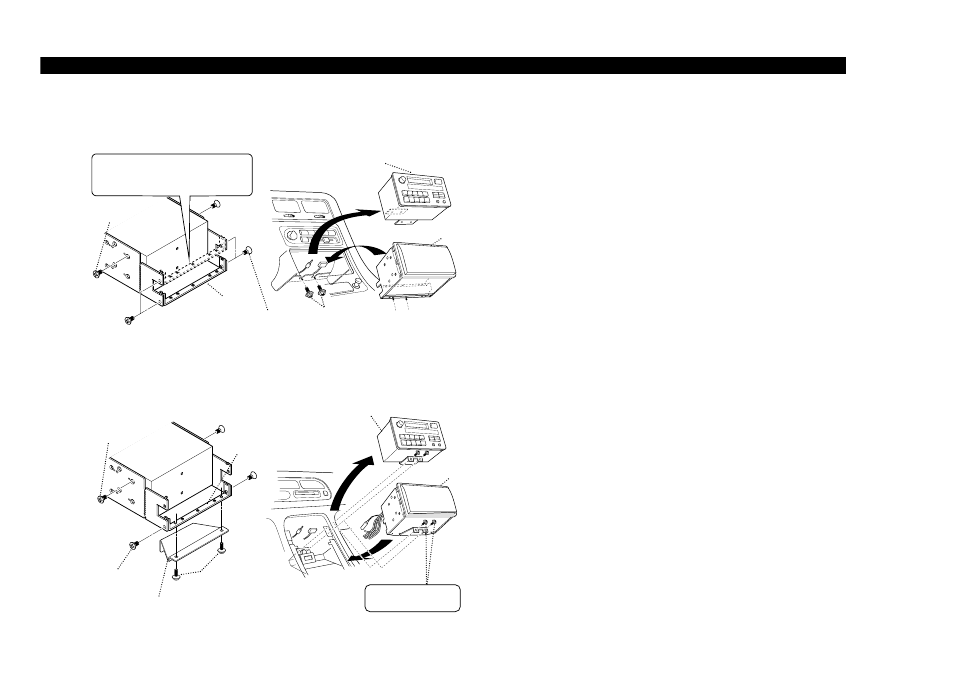

Installation type 2 ■
Accessory!
(M5
× 10 mm)
DPX-5010
Factory-installed
car stereo
Installation type 3 ■
DPX-5010
Factory-installed
car stereo
DPX-5010
Accessory9
(M3
× 6 mm)
Accessory@
Accessory!
(M5
× 10 mm)
Remove the factory-installed car
stereo and install the unit. 2
Reuse the screws
that were removed.
Attach Accessory@ to
Accessory8 which was
assembled in Assembly. 1
Remove the factory-installed
car stereo and install the unit. 2 Attach Accessory8 which
was assembled in
Assembly. 1
DPX-5010
Accessory9
(M3
× 6 mm)
Accessory8
Accessory8 is to be fixed either
to the center or bottom,
depending on the car model.
Accessory8
Accessory0
(M5
× 6 mm)
Accessory0
(M5
× 6 mm)
