Front, Fork disassembled – KTM 450 SMR 2008 User Manual
Page 7
450 SMR 2008
FIG PART
NUMBER
DESCRIPTION
QTY
52 48600047
PISTON COMPRESSION D=27,9
2
53 50180222
O-RING NBR 4X1,5
8
54 48600518S
PIN VALVE SET
2
55 40540486
NUT M6X0,5 REBOUND
2
56 48600294
GUIDE RING 44,2 X39,3
2
57 48600577
RING SPRING-SUPPORT
2
59 48600048
O-RING NBR 46 X 2
2
60 48600697S1
AXLE-CL. MA AXIAL BR.+INN.TUBE
1
61 48600691S1
AXLE CLAMP R/S + TUBE CPL. 08
1
62 0025080256
HH COLLAR SCREW M8X25 TX40
4
63 48600163
CHECK VALVE NUT M6X0,5 D=2
2
64 48600202
SPRING CHECK VALVE D=0,7
2
69 48600509
PISTON ROD COMPRESSION
2
71 48600575
PISTON REBOUND SX 2007
2
72 48600455
PISTON RING 5X1X68
2
74 48600296
RING D=23,45X2,65
2
75 48600471
PISTON ROD SEALING
2
76 48600546S
SCREW SLEEVE M24,5X1 CPL.
2
77 48600430
DU BUSH FOR PISTON ROD
2
78 48600709
CHECK VALVE STOP
2
79 48600446
LOCK WASHER D=20
2
81 15080017
SILICON CAP
2
82 48600692
RUBBER CAP D=26,4
2
83 48600401S1
FORK OIL SAE5 5L 2005
1
84 40140024
O-RING NBR 43X2
2
85 48600516S1
SCREW CAP CPL. L=125
2
86 48600527
AH SCREW M4X6
2
87 48600526
SCREW M4X10
4
88 48600514
MEMBRANE SLEEVE
2
98 T511
SILICONE GREASE F. DUST STRI
1
99 R14014
REPAIR-KIT GASKET 48MM 0
1
087800132 / C087800136
* NEW PART
X AS REQUIRED
5

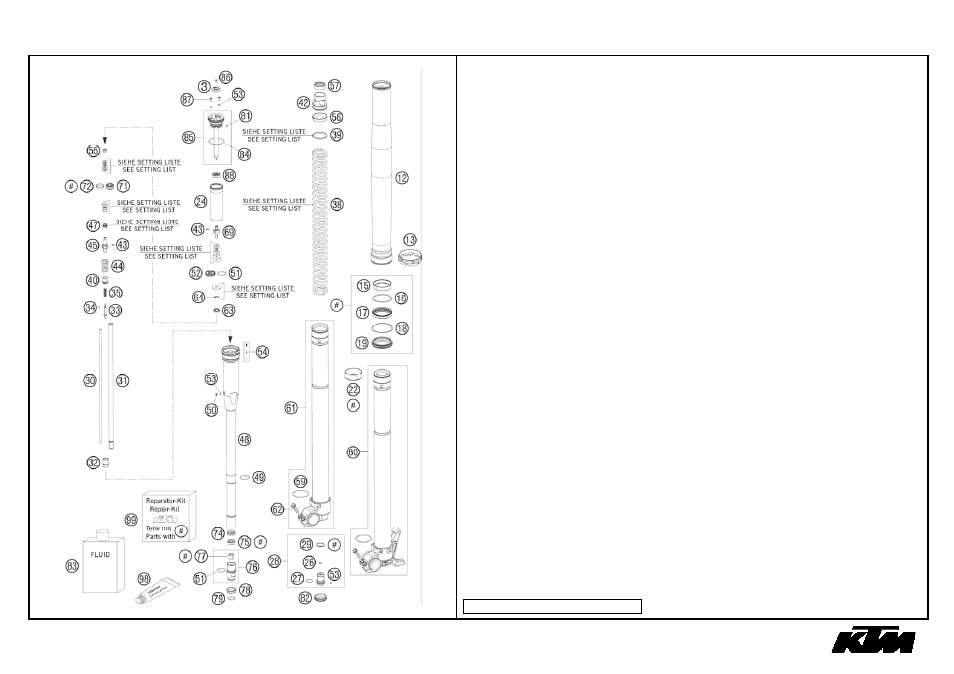

FRONT
FORK DISASSEMBLED
