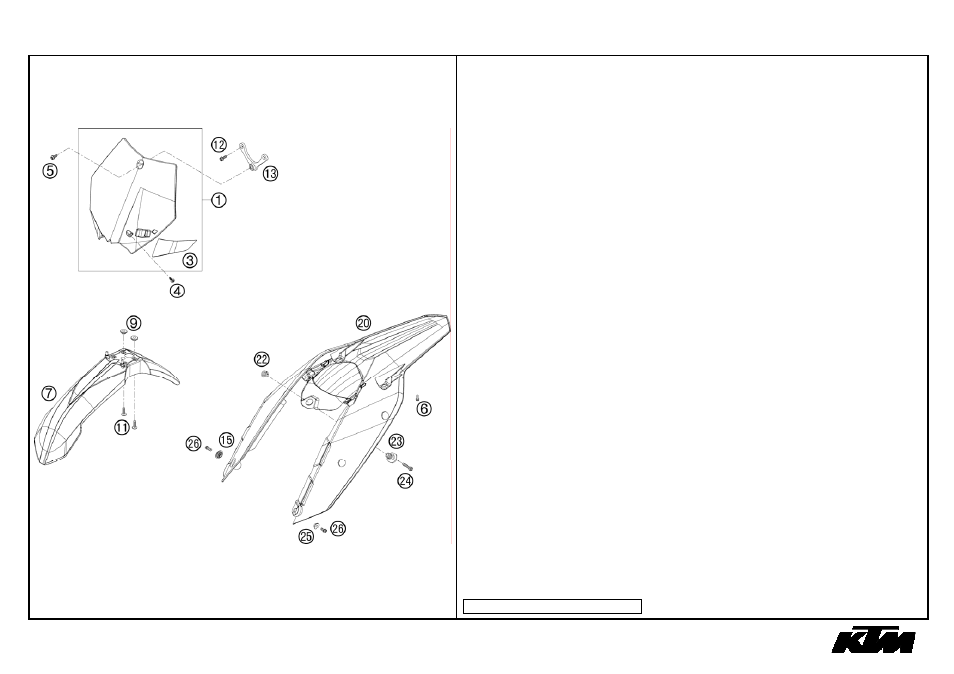

Mask, Fenders – KTM 450 SMR 2008 User Manual
Page 17
450 SMR 2008
FIG PART
NUMBER
DESCRIPTION
QTY
1 7730800704430
NUMBER PLATE CPL. BLACK
1
3 7730802200004
BRAKE HOSE GUIDE ORANGE 07
1
4 0017060204
EJOT PT SCREW K60X20 ALU WS=6
1
5 0024060106
HH COLLAR SCREW M6X10 TX30
1
6 0014050163
HH COLLAR SCREW M 5X16 WS=6
2
7 7730821000030
FENDER FRONT SMR 08
1
9 54808020000
SPACER BUSHING 03
4
11 0024060206
HH COLLAR SCREW M6X20 TX30
4
12 0025060106
HH COLLAR SCREW M6X10 TX30
2
13 77308207051
RETAINER F.NUMBER PLATE SMR 08
1
15 77306001030
COLLAR BUSHING 4,5/12,6/23
1
20 7730801300004
REAR FENDER SX ORANGE 07
1
22 50314057050
COLLAR NUT M12X1/WS17 H=5MM
1
23 54807048000
BUSHING FOR SEAT FASTENING 03
1
24 0025060256
HH COLLAR SCREW M6X25 TX30
1
25 50308052000
BUSH FOR SPOILER 6X11X16X5 MM
1
26 0025060206
HH COLLAR SCREW M6X20 TX30
2
087730810 / C087730810
* NEW PART
X AS REQUIRED
15
MASK,
FENDERS
