Swing – KTM 450 SMR 2008 User Manual
Page 11

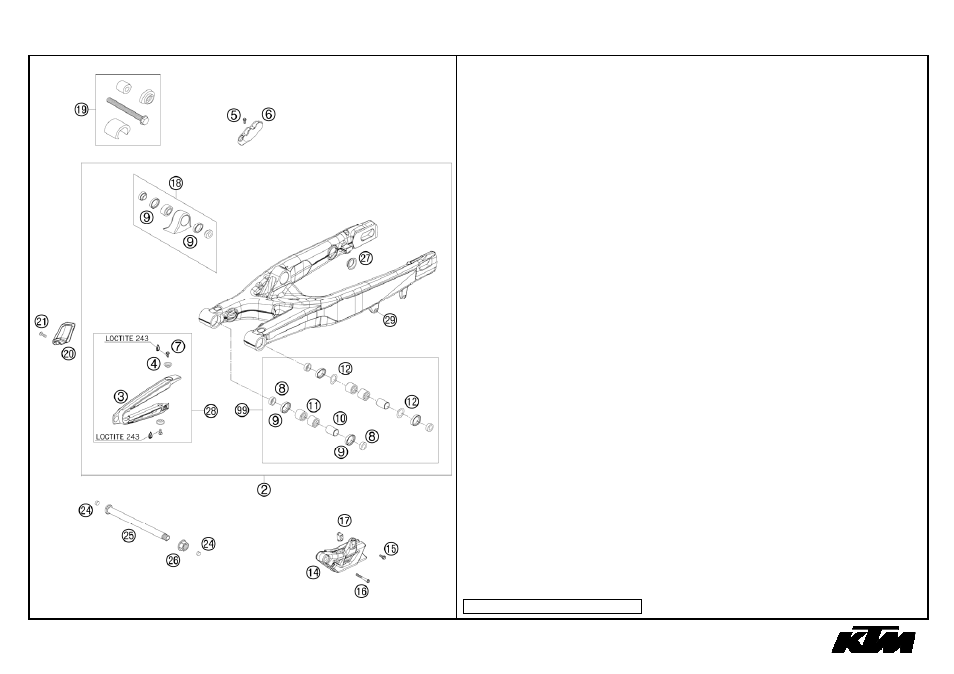

450 SMR 2008
FIG PART
NUMBER
DESCRIPTION
QTY
2 77304230044
SWING ARM CPL. 08
1
3 77304066000
CHAIN SLIDING PROTECTION
1
4 77304066050
BUSHING F. CHAIN SLIDING PR.07
2
5 0009050103
SPECIAL SCREW M 5,0X10
2
6 77313047000
BRAKE HOSE GUIDE LOWER 07
1
7 59009062013
SPECIAL SCREW M6X13 WS=8 10.9
2
8 54804034000
BUCKET F. SHAFT SEAL RING 03
4
9 0760253270
SHAFT SEAL RING 25X32X7
6
10 54804032000
BUSHING SLEEVE F. SWING ARM 03
2
11 58033097000
NEEDLE BEARING HK 2216
4
12 54603036000
STOP DISK 22,2X31,7X1
2
14 77304070000
CHAIN GUIDE REAR CPL. 07
1
15 59009062019
SPECIAL SCREW M6X19 WS=8 10.9
1
16 0025060456
HH COLLAR SCREW M6X45 TX30
1
17 77304070030
INSERTION NUT F. CHAIN GUIDE
1
18 50304090044
PIVOT BEARING+BUSHES PDS '99
1
19 50329000044
TOOL BEARING MOUNTING PDS
1
20 77304260000
CHAIN STOP GUARD SMR 2008
1
21 0017060203
EJOT PT SCREW K60X20 WS=6
1
24 55009086000
PLUG SFL13
2
25 77304037000
SWINGARM BOLT M16X1,5 07
1
26 54804038000
SELF LOCK.NUT M16X1,5 WS=19 03
1
27 58404041100
CLOSING COVER ROUND 03
4
28 77304066010
CHAIN GUARD CPL. 06
1
29 54603055051
PRESS IN NUT M6 STEEL ZINC
1
99 54804230210
SWINGARM REPAIR KIT 05-07
1
087730490 / C087730491
* NEW PART
X AS REQUIRED
9
SWING
ARM
