Monoshock, Disassembled – KTM 450 SMR 2008 User Manual
Page 13
450 SMR 2008
FIG PART
NUMBER
DESCRIPTION
QTY
87 50180480
BUMP RUBBER D58 D17 H59 SXS 05
1
90 50180512S1
MONOSHOCK LOWER PART CPL. 07
1
91 50180105
THREADED BUSH M12 PDS
1
92 50180297
RUBBER PLUG D=8
1
93 40540603
STEEL BALL D=3MM
2
94 48600028
SPRING D=2,9 L=7,9
1
96 50180222
O-RING NBR 4X1,5
1
97 50180434S
ADJUSTING SCREW REBOUND TRAVEL
1
98 50180342S1
SHOCK ABSORBER FLUID 5 LT '03
1
99 R12014
REPAIR KIT 5018 PDS 06
1
087800434 / C087800438
* NEW PART
X AS REQUIRED
11

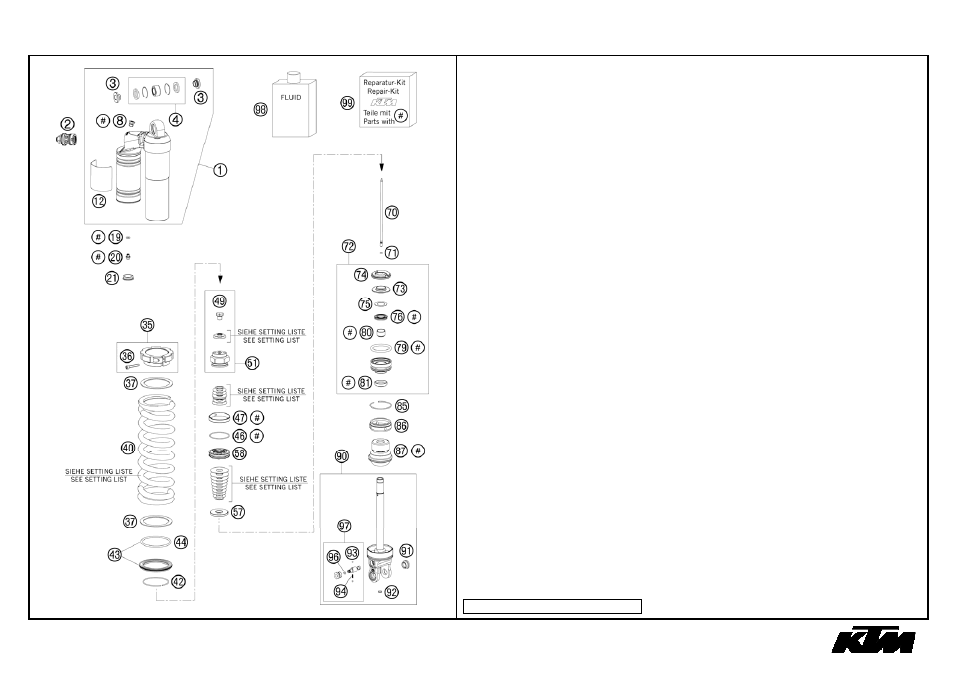

MONOSHOCK
DISASSEMBLED
