Filter – KTM 450 SMR 2008 User Manual
Page 15
450 SMR 2008

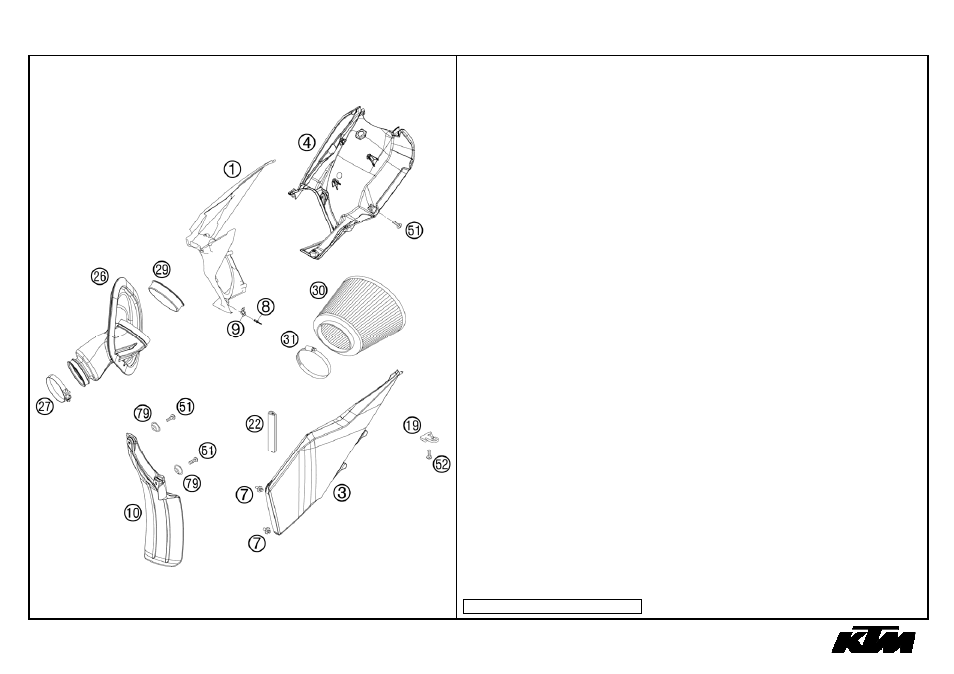

FIG PART
NUMBER
DESCRIPTION
QTY
1 7730600101030
FILTER WALL SX BLACK 07
1
3 7730600300030
FILTER BOX COVER SX BLACK 07
1
4 77306001020
REAR PART FILTER BOX 07
1
7 54806008051
QUICK RELEASE-NIPPLE 03
2
8 54806108052
BLIND RIVET 3,3X9,7 GROOVED 04
4
9 54806008050
QUICK RELEASE-SPRING HANGER
2
10 77306010000
FENDER FOR FILTER BOX
1
19 77306019000
FASTEN. DEVICE FILTER S. SX 07
1
22 60114010070
EDGE PROTECTOR 14X9,5X66 MM 06
1
26 77306226000
CARB. CONNECT. BOOT 450 SMR 08
1
27 46005058000
HOSE CLAMP 40-60MM
1
29 77306226040
AIR FILTER SPACER RING SMR 08
1
30 57306015000
AIR FILTER 660 SM FACTORY 02
1
31 58506027000
HOSE CLAMP 70-90MM
1
51 0017060204
EJOT PT SCREW K60X20 ALU WS=6
x
52 0017060203
EJOT PT SCREW K60X20 WS=6
1
79 77304066050
BUSHING F. CHAIN SLIDING PR.07
2
087730610 / C087730611
* NEW PART
X AS REQUIRED
13
AIR
FILTER
