Connection of Equipment
Chapter 1: Connection of Equipment
T V S C A RT
Y C R C B
V C R S C A RT
C OA X I A L
COMPONENT
VIDEO OUTPUT
DIGITAL OUTPUT
(PCM/BIT STREAM)
INTERFACE PROGRESSIVE O P T I C A L
S VIDEO OUTPUT
1 2
VIDEO
OUTPUT 6 C H . O U T P U T COMPONENT VIDEO OUTPUT
FRONT SURROUND
M I X L I N E
O U T P U T
1
2
SUB WOOFER
CENTER L
R

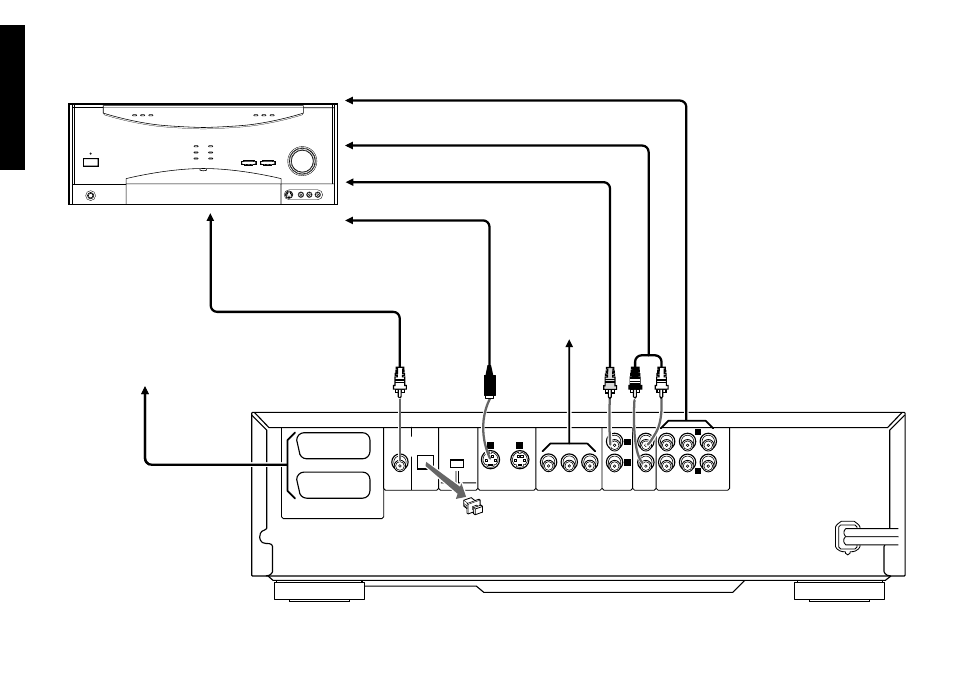

Connection with an AV Amplifier
AV amp
Coaxial cable (provided)
Audio connection: To audio input jacks
Video cable (provided)
Audio cable (provided)
Video connection: To video input jack*
Digital audio connection
Used when the AV amp has 6-channel
inputs.
Used when the AV
amplifier and TV have the
component video
connection capability.
!
S Video connection: To S Video input connector*
S Video cable (provided)
6-channel audio connection: To 6-channel audio input jacks
Audio cable (provided)
Used when the TV or VCR has the SCART
connection capability. !
* Select the video connection method according to the TV in use. When S-Video cable is connected, the ordinary video connection is not necessary.
Remove the protective cap before using the
DIGITAL OUTPUT OPTICAL.
