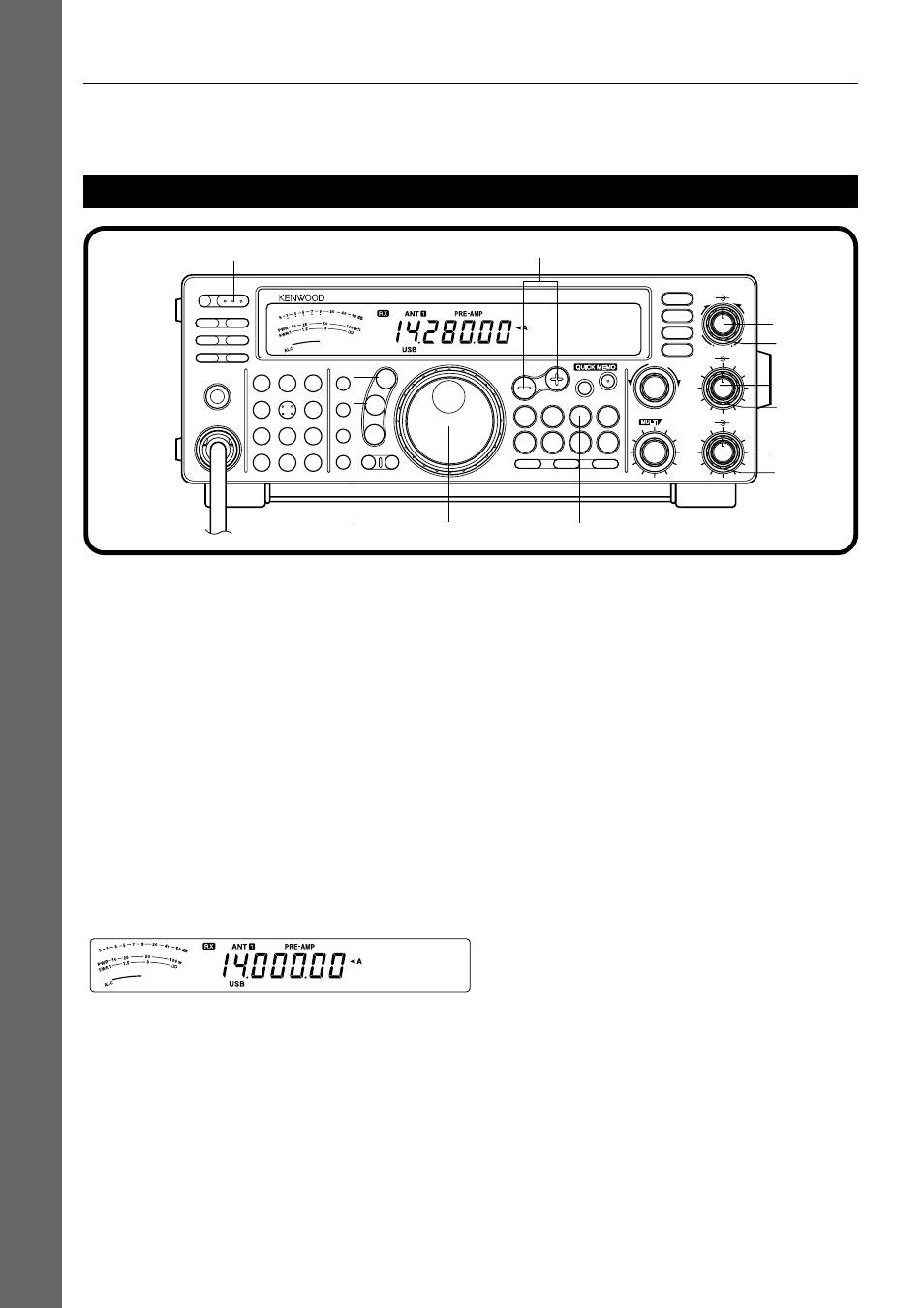

YOUR FIRST QSO
4
RECEIVING
2 YOUR FIRST QSO
Note: Only those buttons and controls required to briefly try the
transceiver are explained in this section.
q
Set the following as specified:
•
AF control:
Fully counterclockwise
•
RF control:
Fully clockwise
•
DSP SLOPE (HIGH) control:
Fully clockwise
•
DSP SLOPE (LOW) control:
Fully counterclockwise
•
IF SHIFT control: Center
•
SQL control:
Fully counterclockwise
w
Switch ON the DC power supply, then press and
hold the [POWER] switch briefly.
•
The transceiver switches ON. Indicators and
frequency digits should appear on the display.
e
VFO A should already be selected for receiving
and transmitting, and you should see “
t
A” on the
display. If not, press the [A/B] button.
r
Increase the AF control slowly clockwise until you
hear a suitable level of background noise.
t
Select an Amateur band by pressing the [UP] or
[DOWN] button.
y
Select an operating mode by pressing the
[LSB/USB] or [CW/FSK] button.
•
Press the same button again to toggle to the
second function on the button. For example,
repeatedly pressing the [LSB/USB] button
switches between LSB and USB modes.
u
Turn the Tuning control to tune in a station.
•
If no stations are heard but you have an
antenna connected, possibly the wrong
antenna connector is selected. Pressing the
[ANT] button toggles between the Antenna 1
and the Antenna 2 connectors.
Since you’ve now installed the TS-570, why not try it? The instructions below are abbreviated. They are intended
only to act as a quick introduction. If you encounter problems or there’s something you don’t understand, you can
read about the subject in more detail later.
PF
ATT
PRE-AMP
VOX
PROC
SEND
CH1
MIC
CW
FSK
LSB
USB
FM
AM
AT TUNE
POWER
HF TRANSCEIVER TS-570D
PHONES
1
CH2
2
CH3
3
ANT
4
REC
5
FINE
6
NB
7
AGC/TONE
8
REV
9
CLR
F.LOCK
0
ENT
MIC
PWR
KEY
DELAY
MENU
1MHz
SPLIT
M/V
DOWN
UP
MR
TF-SET
A=B
SCAN
M>VFO
M.IN
M.IN
FILTER
CW TUNE
B.C.
N.R.
A/B
CLEAR
RIT
XIT
RIT/XIT
IF SHIFT
SQL
CH
4
6
0
10
2
8
AF
RF
L
O
W
C
U
T
H
IG
H
C
U
T
HIGH
DSP SLOPE
LOW
4
6
0
10
2
8
+
–
q
q
e
u
t
qr
q
q
q
w
y
•
Note that pressing [POWER] for more than
approximately 2 seconds switches the
transceiver power OFF.
