KODAK 1500 Intraoral Camera User’s Guide (8G7939) 3
Wired Camera

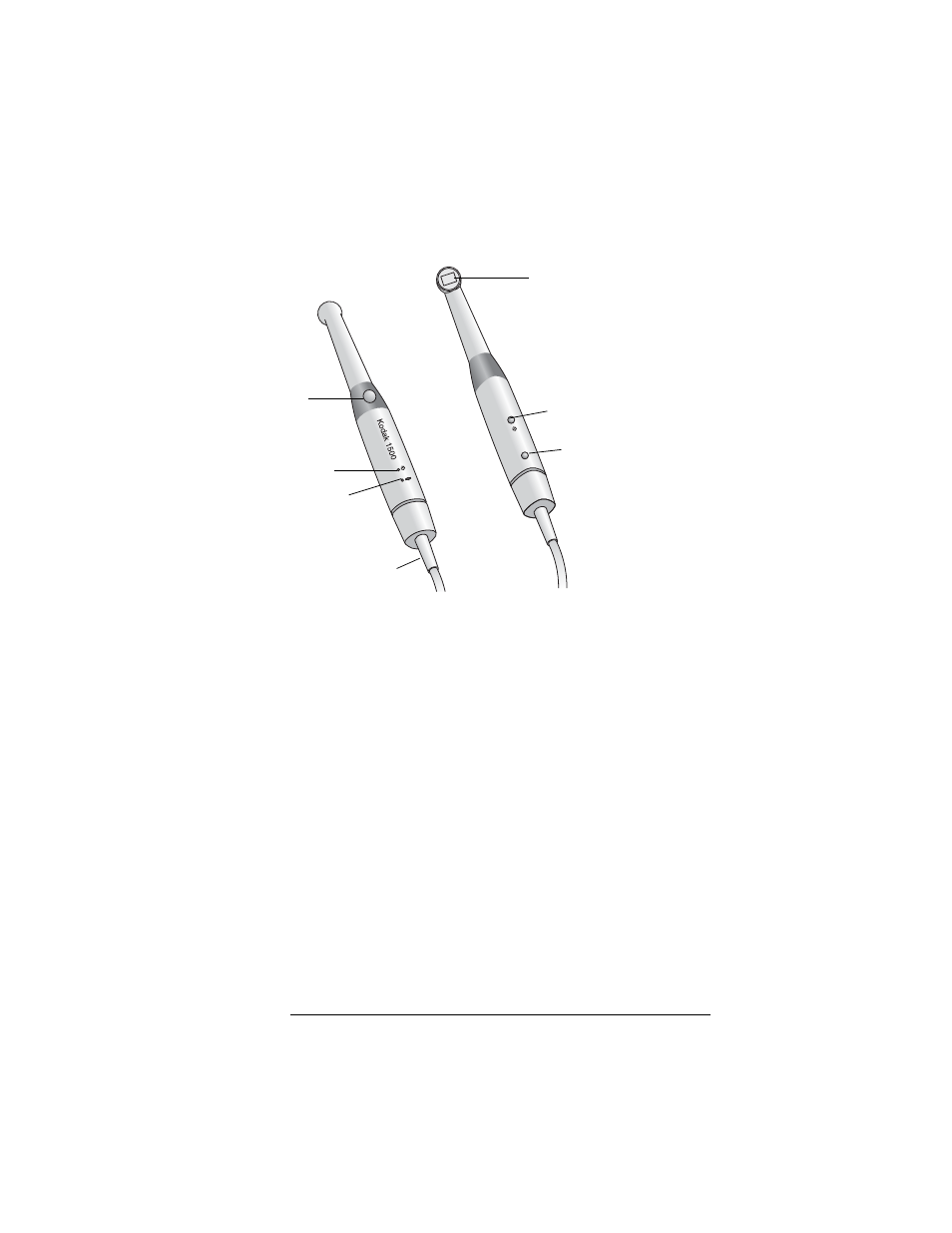

Figure 2 Camera Components—Wired
1 LED and Lens
window
View white LEDs that illuminate the oral
cavity.
2 Power On/Off
button
Press 3 seconds to power on. Press 5
seconds to power off.
3 Cable Release
button
Press button and pull cable out.
4 Shutter
Release
button
Press halfway down to perform auto focus.
Press all the way down to capture an
image. Press halfway down and release it
to return to video mode.
5 Power
indicator
Green indicates the camera is powered on;
no light indicates the camera is powered
off.
6 USB
Connection
indicator
Solid blue indicates the connection is
complete; blinking blue indicates the
connection is in progress.
7 Cable Insert cable into bottom of camera until it
fits tightly in place.
1
2
3
4
5
6
7
