This catalog covers: GRID NO. This grid covers:

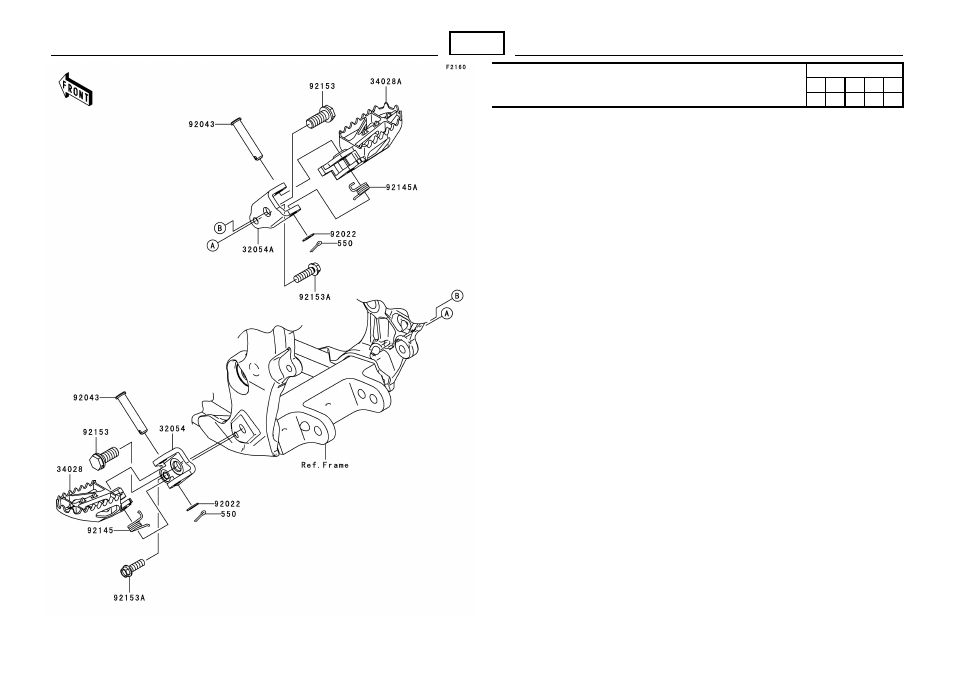

’08 KX450D8F Chassis E-7 Footrests
Quantity-KX450
’08
Ref.
No.
Part No. Description Spec Code
D8F
32054 32054-0020 BRACKET-STEP,LH 1
32054A 32054-0021 BRACKET-STEP,RH 1
34028 34028-0014 STEP,LH 1
34028A 34028-0015 STEP,RH 1
92022 92022-1829 WASHER,10.2X16X1 2
92043 92043-0074 PIN,10X42.5 2
92145 92145-0198 SPRING,STEP,LH 1
92145A 92145-0199 SPRING,STEP,RH 1
92153 92153-0653 BOLT,FLANGED,12X23 2
92153A 92153-0838 BOLT,FLANGED,8X25 2
550 550S3020 PIN-COTTER,3.0X20 2
32 MAY 29,2007
