Kawasaki MICRO-K KX450 D8F - Manual (Page 33)

This catalog covers: GRID NO. This grid covers:

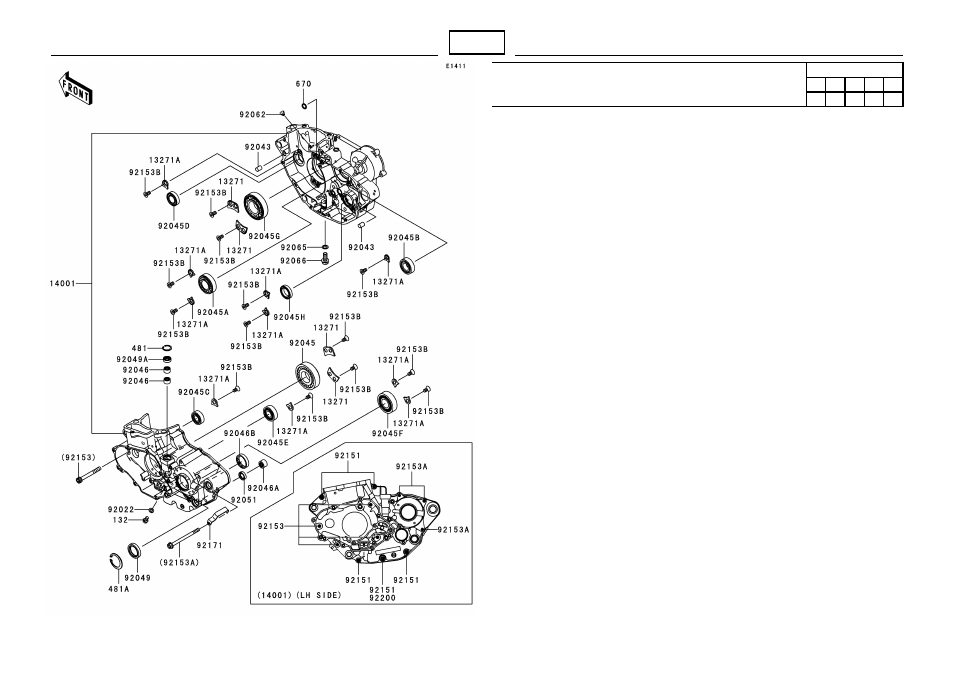

’08 KX450D8F Engine C-5 Crankcase
Quantity-KX450
’08
Ref.
No.
Part No. Description Spec Code
D8F
13271 13271-0334 PLATE 4
13271A 13271-0345 PLATE 10
14001 14001-0110 SET-CRANKCASE 1
92022 92022-304 WASHER,6.2X11X1 1
92043 92043-1506 PIN,10X14 2
92045 92045-0024 BEARING-BALL,B32-32U-A-EC4 UR5 1
92045A 92045-0035 BEARING-BALL,25X52X15 1
92045B 92045-0036 BEARING-BALL,20X42X12 1
92045C 92045-0037 BEARING-BALL,6202SH2C3 1
92045D 92045-0038 BEARING-BALL,6904C3UR5 1
92045E 92045-0057 BEARING-BALL,3TM-5X0391LUC3 1
92045F 92045-0062 BEARING-BALL 1
92045G 92045-0074 BEARING-BALL,B32-32-A-ZEC4 1
92045H 92045-1432 BEARING-BALL,6805JRZ 1
92046 92046-1010 BEARING-NEEDLE,HK1210 2
92046A 92046-1148 BEARING-NEEDLE,HK1312 1
92046B 92046-1221 BEARING-NEEDLE,7E-HKS33X38X8 1
92049 92049-0030 SEAL-OIL,TC 30 40 7 1
92049A 92049-1475 SEAL-OIL,CLUTCH RELEASE 1
92051 92051-005 SEAL-OIL,TB13225.5 1
92062 92062-0013 NOZZLE,6X7 1
92065 92065-058 GASKET,10.5X16X1 1
92066 92066-0038 PLUG,DRAIN,10X22 1
92151 92151-1545 BOLT,6X50 5
92153 92153-0846 BOLT,7X60 4
92153A 92153-0934 BOLT,FLANGED,6X85 3
92153B 92153-1669 BOLT,TORX,6X8.7 18
92171 92171-0579 CLAMP 1
92200 92200-0171 WASHER,6.3X13.5X1.0 1
132 132L0608 BOLT-FLANGED-SMALL,6X8 1
481 481J2100 CIRCLIP 1
481A 481J4000 CIRCLIP-TYPE-C,40MM 1
670 670D1507 O RING,7MM 1
15 MAY 29,2007
