CD-2280M/DPF-J9010 (En)
6
System connections
L
A B
R
OUTPUT
COAXIAL SL-16
TEXT
DIGITAL
OUT
SYSTEM
CONTROL
TEXT
SL16 XS 8
SYSTEM
CONTROL
COAXIAL SL-16
TEXT
DIGITAL
OUT
OPTICAL
Notes Notes

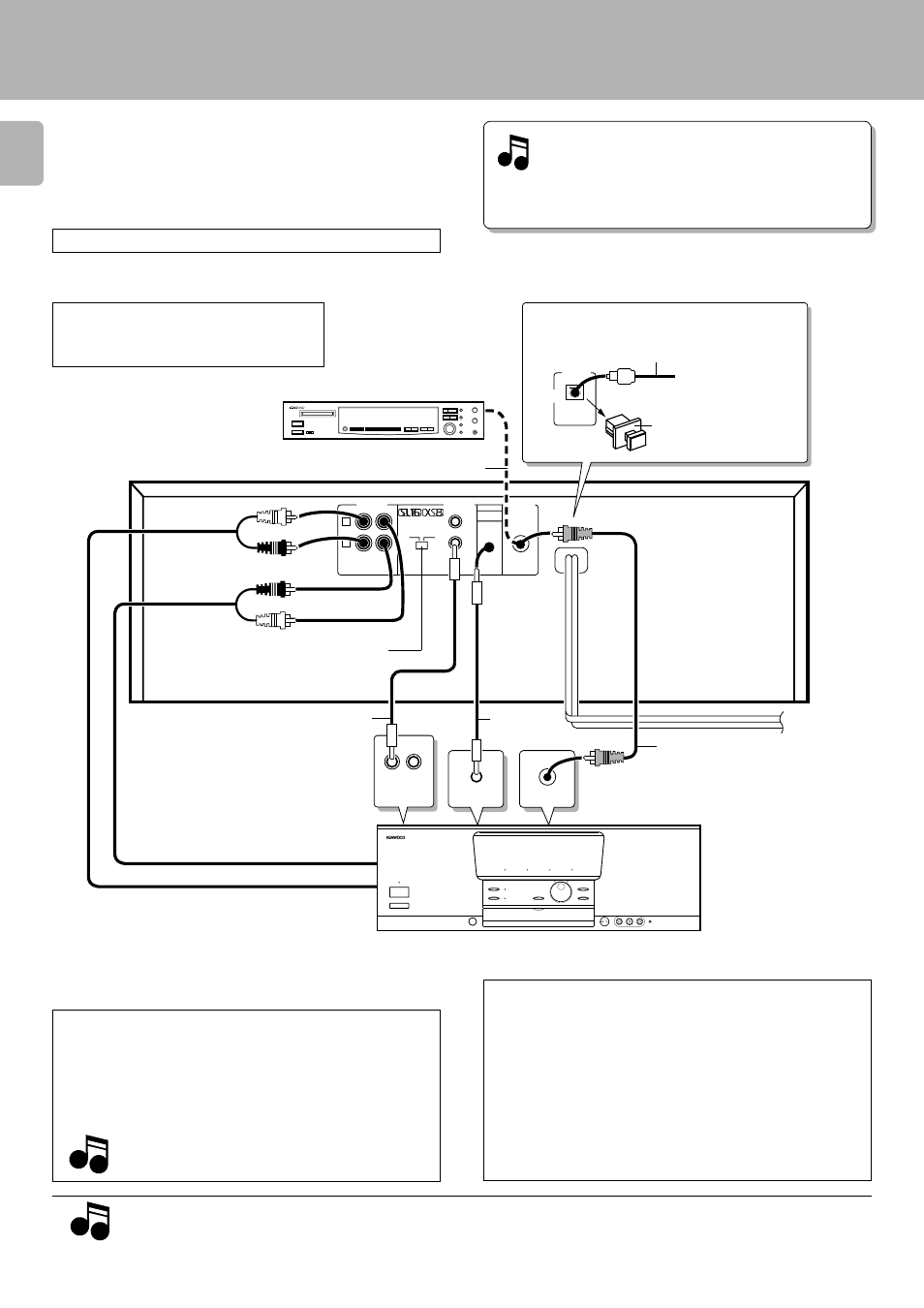

System connections
Make connections as shown below.
When connecting the related system components, refer
also to the instruction manuals of the related components.
Do not plug in the power lead until all connections are com-
pleted.
Be sure to use this unit placed on a level surface.
Malfunction of microcomputer
If operation is not possible or erroneous display
appears even though all connections have been
made properly, reset the microcomputer refer-
ring to “In case of difficulty”.
⁄
Optical connection
(Except for the U.S.A. and Canada)
Optical fiber cable (Commercially-available)
To OPTICAL terminals
like receiver, MD, DAT,
etc.
Remove the protection cap
when using the DIGITAL
OUTPUT (OPTICAL) jack.
SL 16/XS8 switch
7
System control cord To wall AC
outlet
Audio cord
Digital amplifier or receiver, etc.
1. Connect all cords firmly. If connections are loose there could be loss of sound or noise produced.
2. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging/unplugging
connection cords without removal of the power cord can cause malfunctions or damage to the unit.
Communi-
cation cord
Note Note
75
Ω
coaxial cable with RCA PIN (Commercially-available)
Digital component (MD, DAT, etc.)
DIGITAL INPUT (COAXIAL)
75 Ω coaxial cable with RCA PIN
(Commercially-available)
Audio cord
CD2
CD1
* 1
* 2
* 1
OUTPUT A : Output from Mechanism-A.
OUTPUT B : Output from Mechanism-B.
About the DTS multi-channel audio format
The DTS multi-channel audio format is available on CD, LD and
DVD software. DTS is a strictly digital format and can not be
decoded inside most CD, LD or DVD players. For this reason, if
you attempt to listen to DTS encoded software through the ana-
log output of your new CD player, you will experience digital
noise. This noise can be quite loud if the analog output is con-
nected directly to a high power amplification system. Proper
precautions should be taken to avoid this situation. To enjoy
DTS Digital Surround playback, an external 5.1 channel DTS Digi-
tal Surround decoder system must be connected to the digital
output (S/PDIF, AES/EBU, or TosLink) of the CD player.
* 2
Note on the SL-16 TEXT jack
When using a KENWOOD Receiver equipped with the SL-16 TEXT
jack, connect it to the Receiver using the communication cord
provided with this unit. This makes it possible to display the
disc and track titles on the LCD remote control unit (provided
with the Receiver).
Do not forget to set the SL-16/XS8 switches of the Re-
ceiver and this unit to SL-16.
