English 101
English
100 English

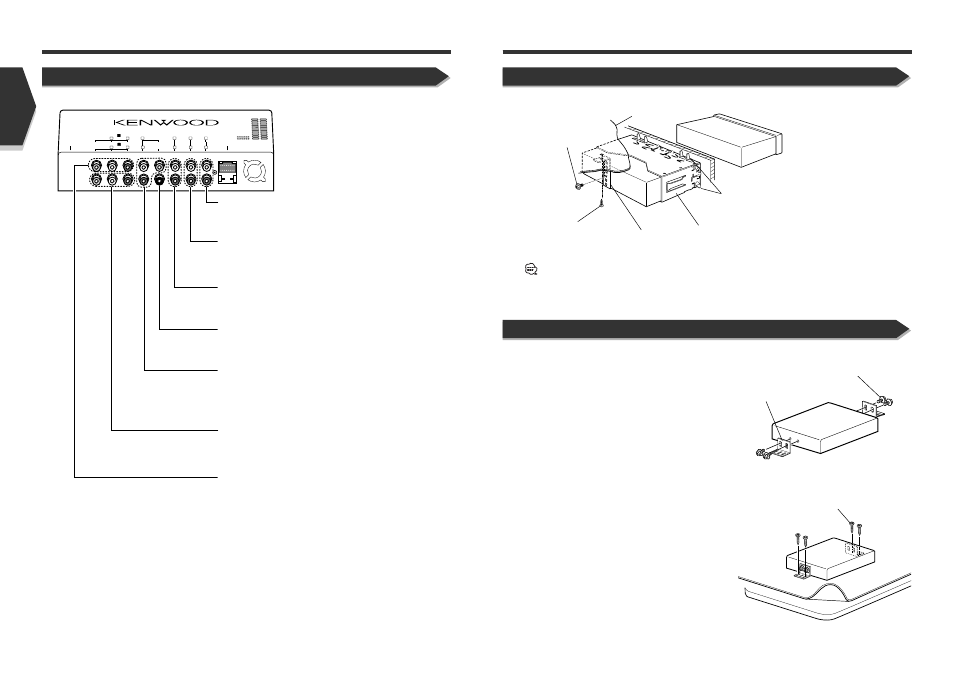

Installation
Make sure that the unit is installed securely in place. If the unit is
unstable, it may malfunction (eg, the sound may skip).
Bend the tabs of the mounting sleeve
with a screwdriver or similar utensil
and attach it in place.
Accessory 6
Metal mounting strap
(commercially available)
Self-tapping screw
(commercially available)
Firewall or metal support
Screw (M4X8)
(commercially available)
;;;;;;
;;;;;;
Sems bolts (M4 × 8 mm)
(Accessory 8)
Tapping screw (ш4 Ч 16 mm)
(Accessory 9)
Installation brackets
(Accessory 0)
1. Attach the installation brackets 0 to the sides of the
hideaway unit using the sems bolts 8.
2. Use the tapping screw 9 to secure the hideaway unit to the
audio board.
Installation for Monitor/Player Unit
Installation for Receiver unit
Connection
FM /AM ANTENNA AV INPUT
AV INPUT
L R
R
R
1
2 VIDEO
VIDEO
FRONT REAR
PREOUT SUB
(MONO) AV OUTPUT
POWER CENTER
L L
R
L
R
L
R
L VIDEO
¶ Audio/Visual input 1
- Visual input (Yellow)
- Audio left input (White)
- Audio right input (Red)
¶ Audio/Visual input 2
- Visual input (Yellow)
- Audio left input (White)
- Audio right input (Red)
¶ Audio/Visual Output
- Visual output (Yellow)
- Audio left output (White)
- Audio right output (Red)
¶ Sub-woofer (Mono) Preout
- Audio left output (White)
- Audio right output (Red)
¶ Center Preout
¶ Rear Preout
- Audio left output (White)
- Audio right output (Red)
¶ Front Preout
- Audio left output (White)
- Audio right output (Red)
Connection for AV Equipments
