1 features, 2 product panels – KTI Networks KCD-303P-A1 User Manual
Page 6
Screw panel-mounting support for industrial enclosure
Optional AC-DC power adapters with extended operating temperature range
Industrial-rated Emission and Immunity performance
1.1 Features
Supports 3 switching-base network segments – [2 x Copper, 1 x POF] and [1 x Copper, 2 x POF]
Auto MDI/MDI-X crossover function on the UTP copper port
Supports IEEE 802.3x flow control for full-duplex operation
Supports Back-pressure flow control for half-duplex operation
Wide operating temperature range for temperature critical environment
Supports desktop mounting, panel mounting, and optional Din-rail mounting
Industrial-rated Emission and Immunity performance
1.2 Product Panels

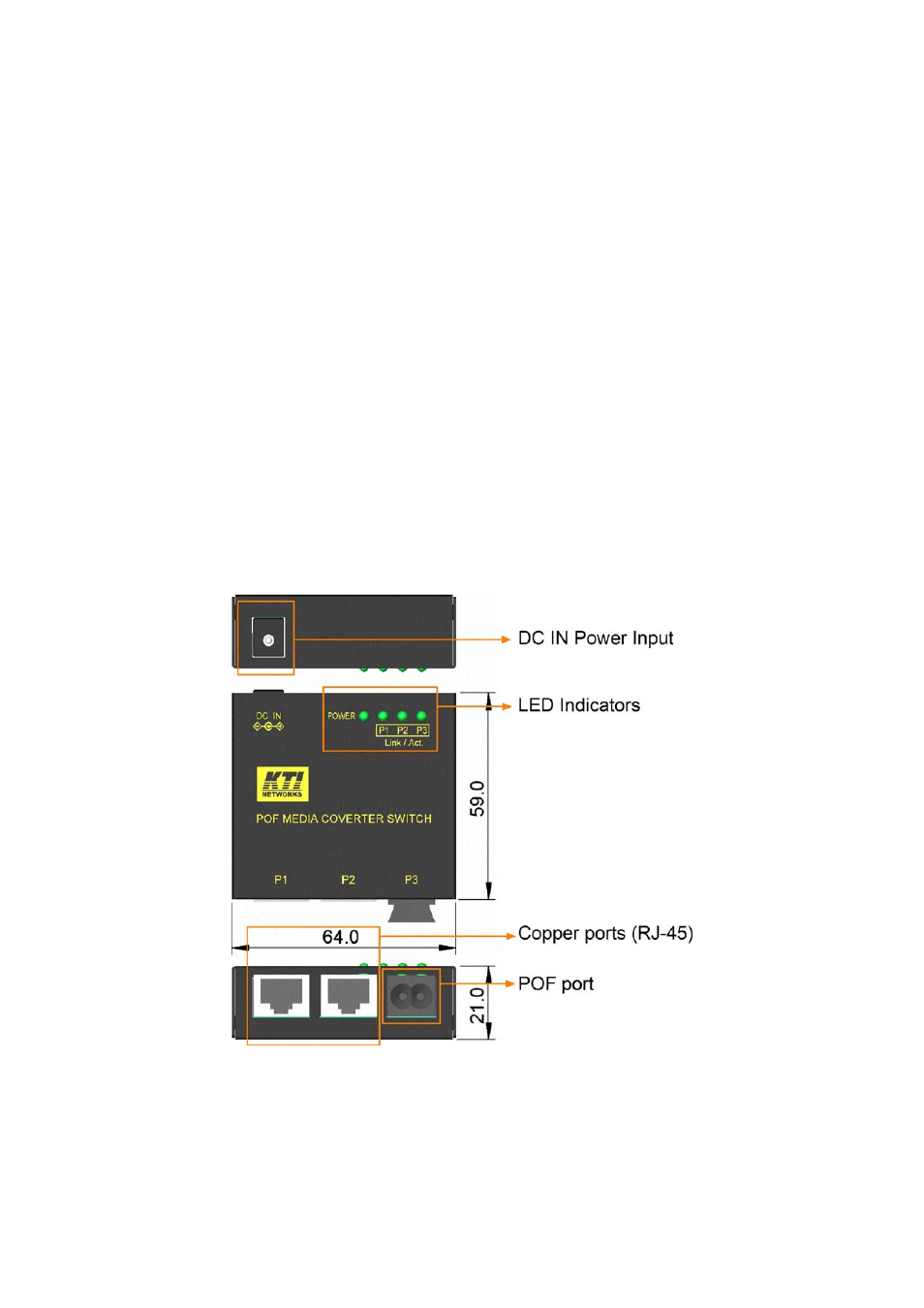

The following figure illustrates the faces of the switches:
KCD-303P-A
6/18
