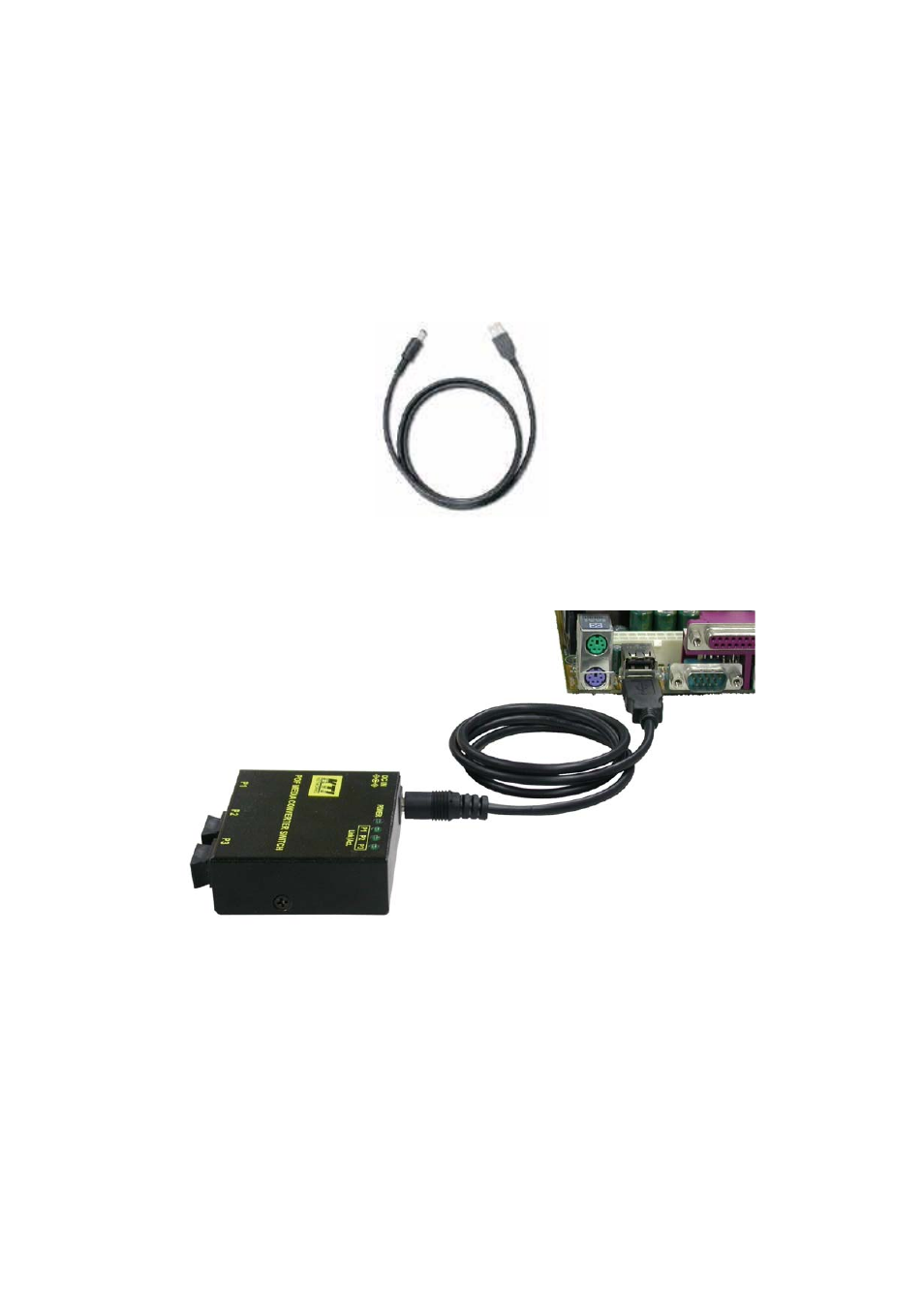

2.7 Applying Power via USB

The USB port on the common computers provides an output of 5V/500mA, equally 5V/2.5Watt, for

the connected USB devices. With an USB DC power cable, the USB power is applicable to the devices

and serves as a handy power, and eliminates the need for extra power adapters and occupation of

limited AC power sockets.

One optional “USB DC power cable” is available for purchasing to supply power for the switch via

USB connection.

To make the connection, the steps are:

1. Connect the USB “A” plug end of the cable to an USB High-power port for power source.

2. Connect power plug end of the cable to the device.

Notes:

1. The cable must be connected to

USB High-power port

for power source.

2. The power source maybe shared by other USB powered devices. Make sure it can deliver 500mA for

the cable to the KTI network device.

3. When connected to an USB hub, the result is unpredictable, since other devices connected to the hub

are sharing the limited DC power. When power is insufficient, the network device would operate

incorrectly.

14/18
