4. Applications

4.1 Application in Industrial Networks

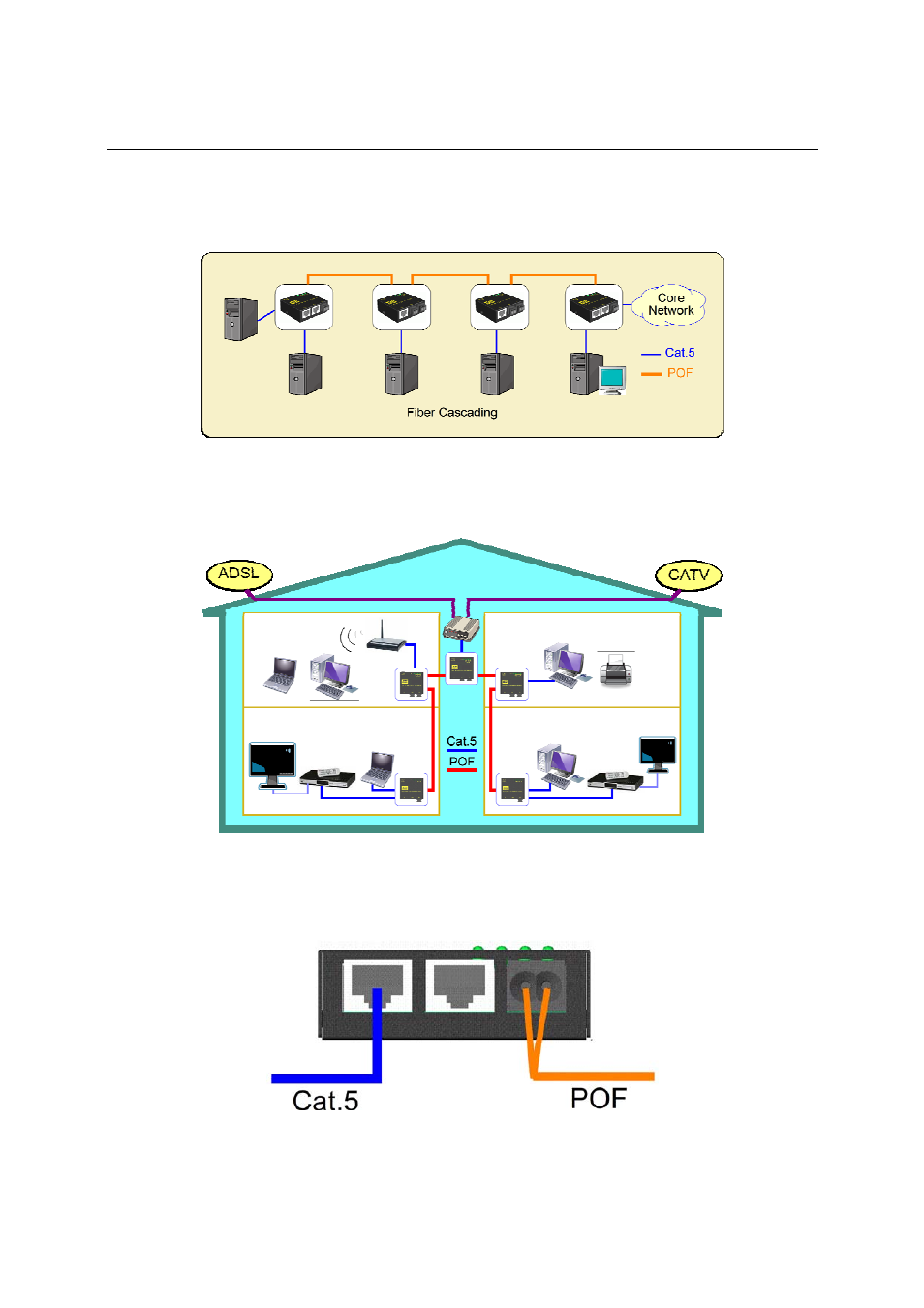

The following figure illustrates an application example in an industrial network. Four devices are

cascaded by POF cables.

4.2 Application For Home Network

The following figure illustrates an application example in home network.

4.3 Copper to POF Media Converter Application

The following figure illustrates an application of copper Cat.5 to POF media conversion.

18/18
