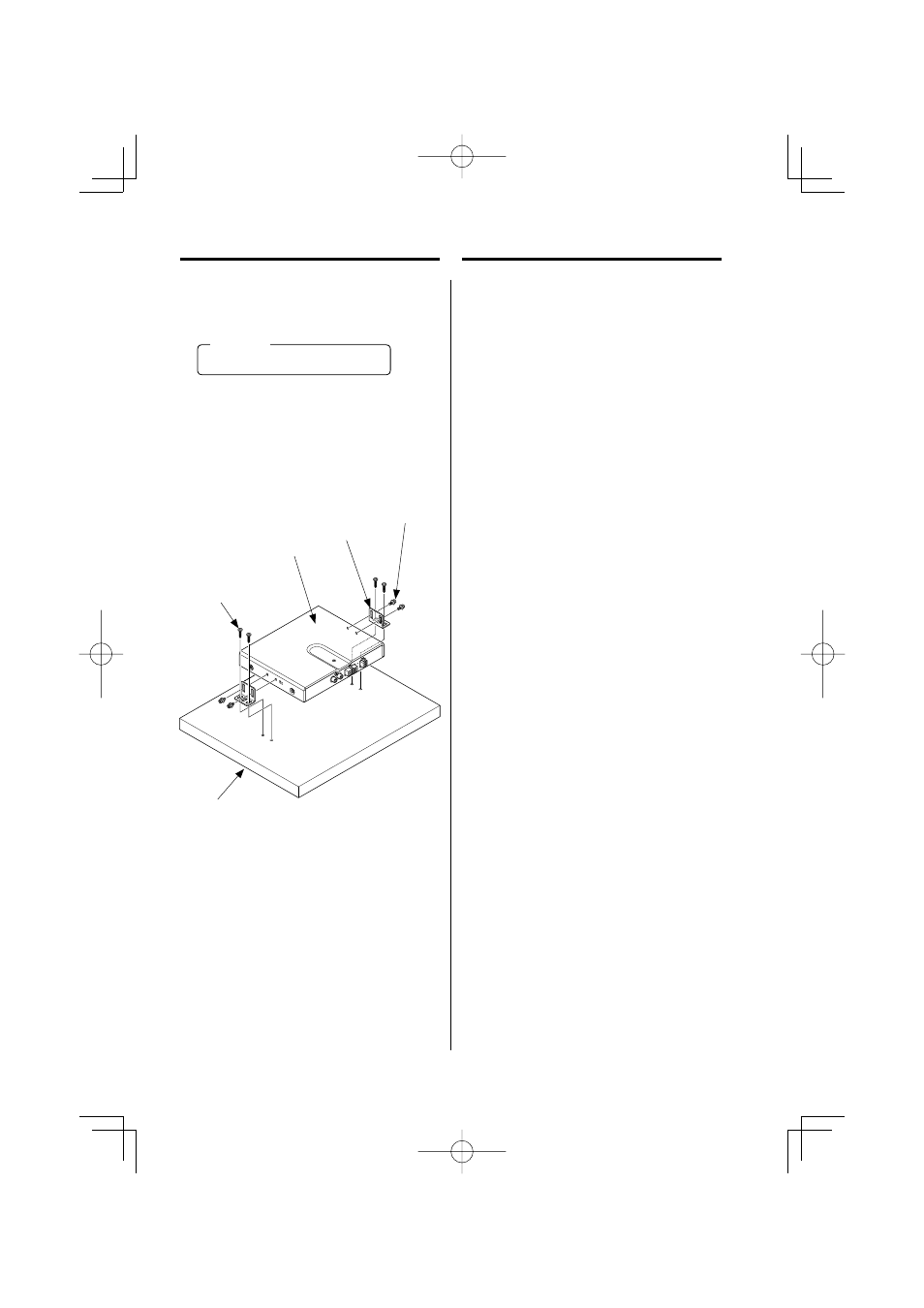

Amp mounting example
Use the provided 4 Machine screws (M4 × 8mm)
5 Bracket 6 Tap screws (Ш 4 Ч 16mm) and
mount the amp.
Be Sure To:
Fasten securely for safety.
Caution: ––––––––––––––––––––––––––––––––––
Install this unit in a location which allows heat to
easily dissipate.
Once installed, do not place any object on top of
the unit.
––––––––––––––––––––––––––––––––––––––––––
Plywood or
other panel
6 Tap screw
(Ш4 Ч 16mm) × 4
1 Amplifier
4 Machine screw
(M4 × 8mm) × 4
5 Bracket × 2
Specifications
The following ratings and design are
subject to change without notice.
[Amp unit]
Maximum output
: 200W
S/N ratio
: 85dB
Low Pass Filter Frequency
: 80Hz
Sensitivity/ Input Impedance (RCA pin jack)
: 60mV / 10kΩ
Output Impedance
: (1.5Ω + 1.5Ω) = 0.75Ω
Power
: DC14.4V (Operational range 10.5 – 16V)
Maximum current consumption
: 10A
Fuse capacity
: 5A × 2
External size (Width × height × depth)
: 195mm × 30mm × 155mm
: 7-11/16” Ч 1-3/16” Ч 6-1/8”
Weight
: 800g (1.8lb)
