Connection – Kenwood KAC-210MR User Manual
Page 4
4
|
English

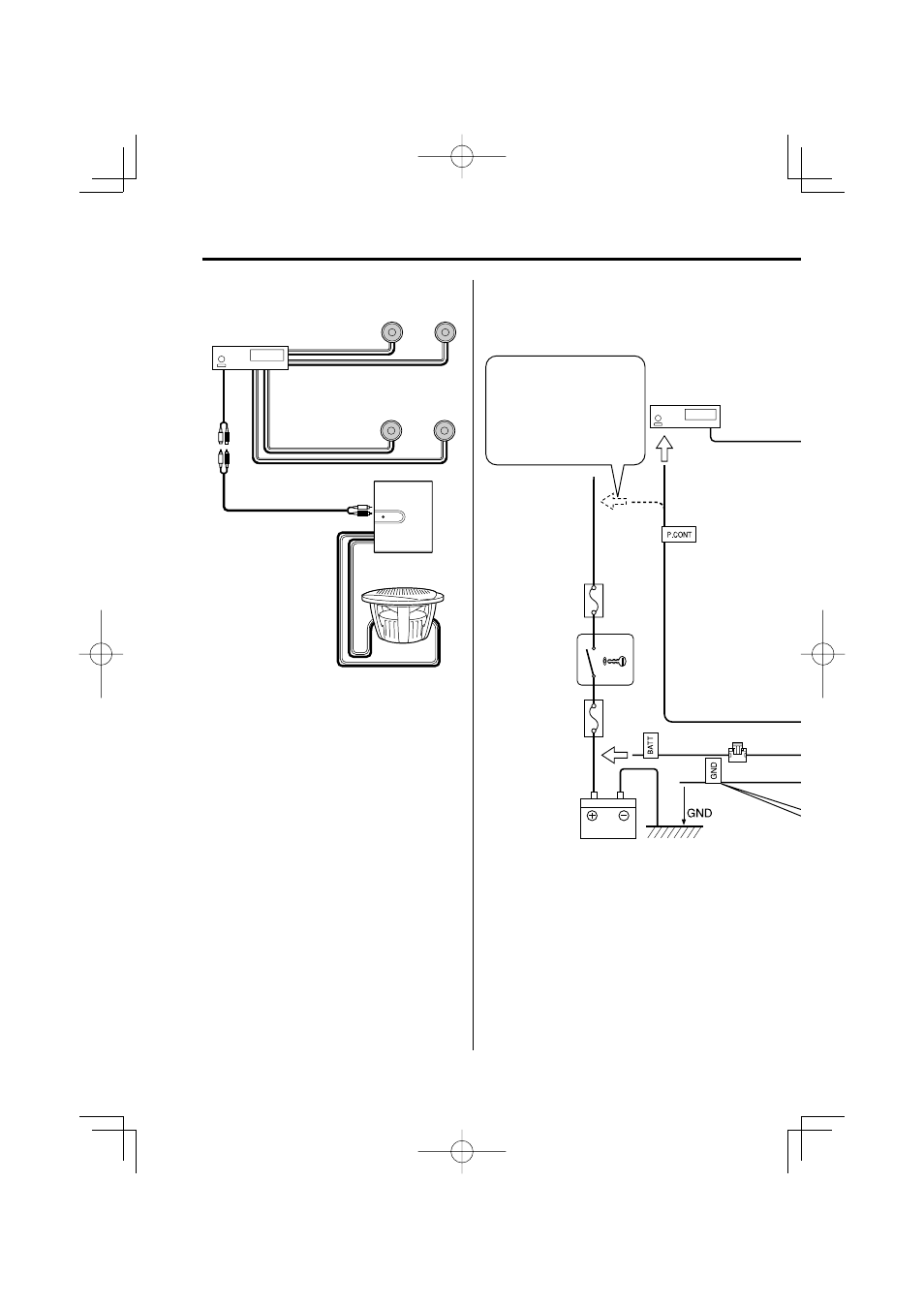

Connection
Front speaker
Rear speaker
CENTER UNIT
RCA cord
( Commercially
available parts)
KFC-W250MRW
1 Amplifier
■ Examples of applications
CENTER UNIT
Fuse 5A × 2
• If there is no power control
terminal in the center unit,
connect the blue/white wire
to the accessory line (ignition
key switch ACC position line).
Car fuse box
Ignition key
switch
Car fuse box
(Main fuse)
Battery
To the power
control terminal
■ Examples of Connections
(1.5Ω Dual Voice Coil Woofer only)
