4. LED Indicators
4.1 LED Panel
The hub provides comprehensive LED indicators for diagnosing and
monitoring the operation of the unit as illustrated below:

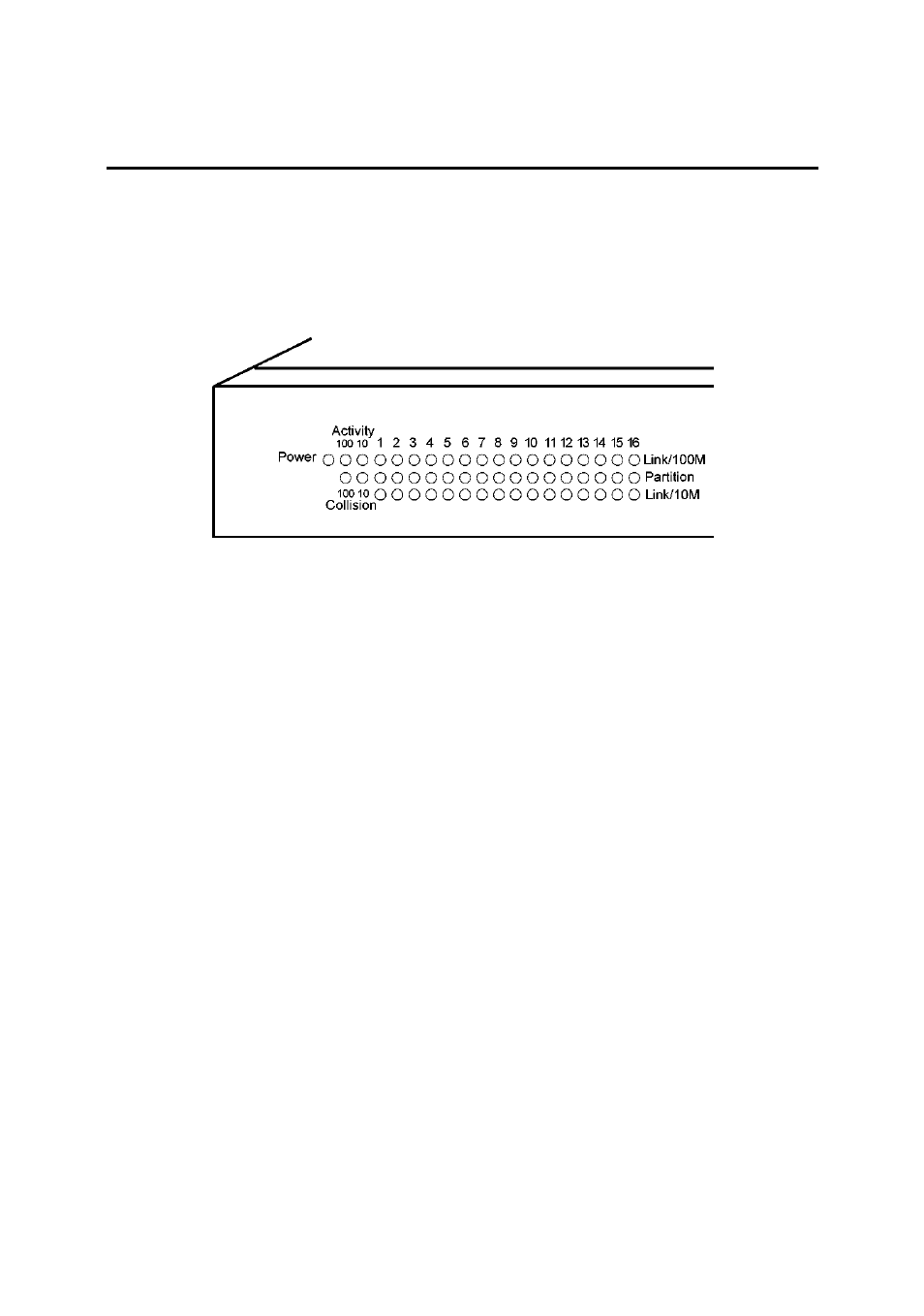

Figure 4-1 LED Indicators
4.2 Interpretation
Power LED indicates the status of the power supplied to the hub.
Activity 10: there are activities occurred on the shared 10M segment.
Blink
There are activities on the segment.
Off
No activity occurs on the segment.
Activity 100: there are activities occurred on the shared 100M segment.
Blink
There are activities on the segment.
Off
No activity occurs on the segment.
Collision 10: there are collisions occurred on the shared 10M segment.
Blink
There are collisions on the segment.
Off
No collision occurs on the segment.
17
