Page 13

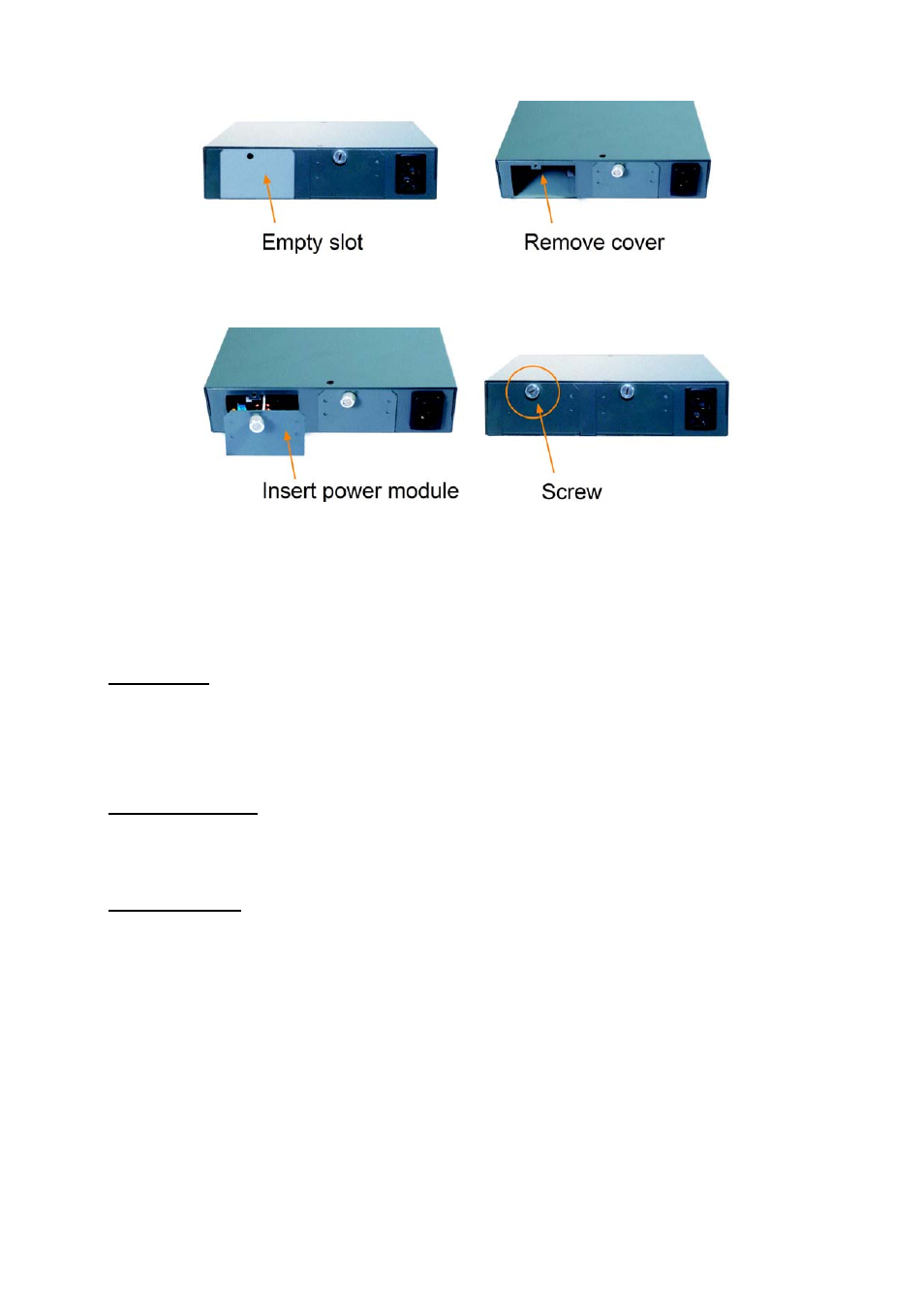

3. Install the power module into the slot until it is seated properly.
4. Screw the module in the injector securely.
2.5 Applying AC Power
One AC power cord, which meets the specification of your country of origin was supplied with the
device unit. The device supports wide range of AC power input specifications as follows:
Specifications
Power Rating:
100 ~ 240VAC, 50/60Hz
Voltage Range:
90 ~ 264VAC
Frequency :
47 ~ 63 Hz
Power Consumption
1 Power Model:
68W max. (including 60W for remote PoE PDs)
2 Power Model:
136W max. ( including 120W for remote PoE PDs)
Power Dissipation
1 Power Model:
3W
2 Power Model:
6W
13
