CONNECTING THE TRANSPORTER WITH THE HF
TRANSCEIVER
You can use the optional cables (PG-4R) to connect the
Transporter with the HF transceiver. For these cables,
contact your authorized KENWOOD dealer.
Note:
◆ Switch OFF both the Transporter and HF transceiver before making
the connection.
◆ The Transporter automatically transmits its call sign in Morse at
regular intervals because of the legal requirement; therefore, transmit
sidetone must be output from the HF transceiver. On TS-570D or
TS-570S, do not select “OFF” in Menu 21. On TS-870S, use the
MONI control to adjust the volume of sidetone.
◆ When the Transporter is too close to the HF transceiver, unwanted
feedback may cause malfunction.
◆ Do not share a regulated power supply between the Transporter and
the HF transceiver. Unwanted feedback may cause malfunction.

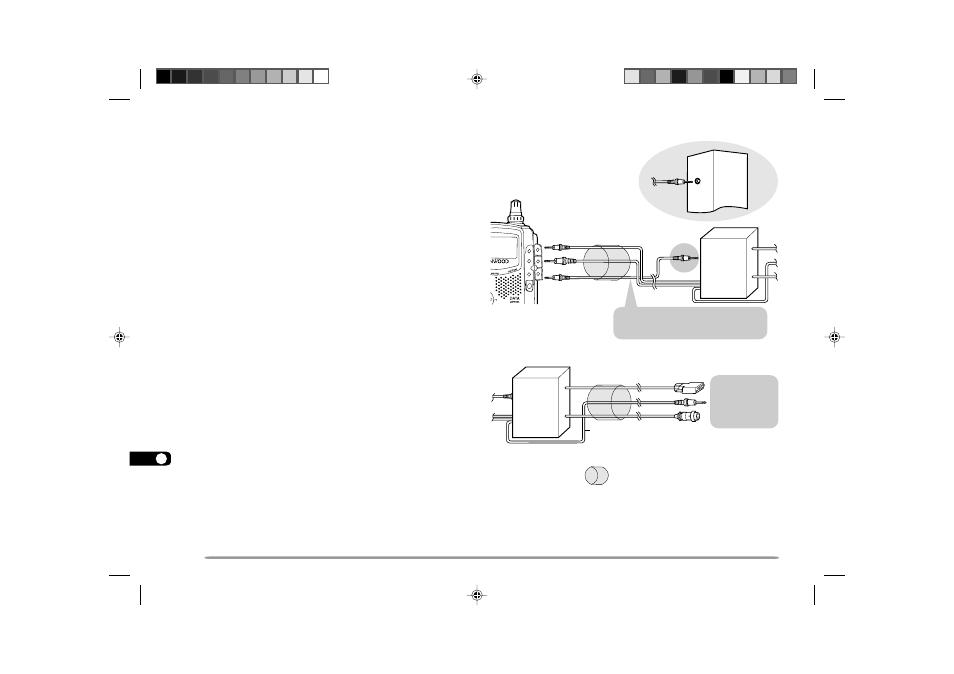

GPS
COM connector
EXT SP jack
MIC connector
I/O unit
HF transceiver
2.5 mm (1/10")
3.5 mm (1/8")
You need not worry about
which end goes to which side
I/O
unit
You may install appropriate noise
filters at the shown positions to
prevent unwanted feedback from
causing malfunction.
3.5 mm (1/8")
2-conductor plug
