System Board
53

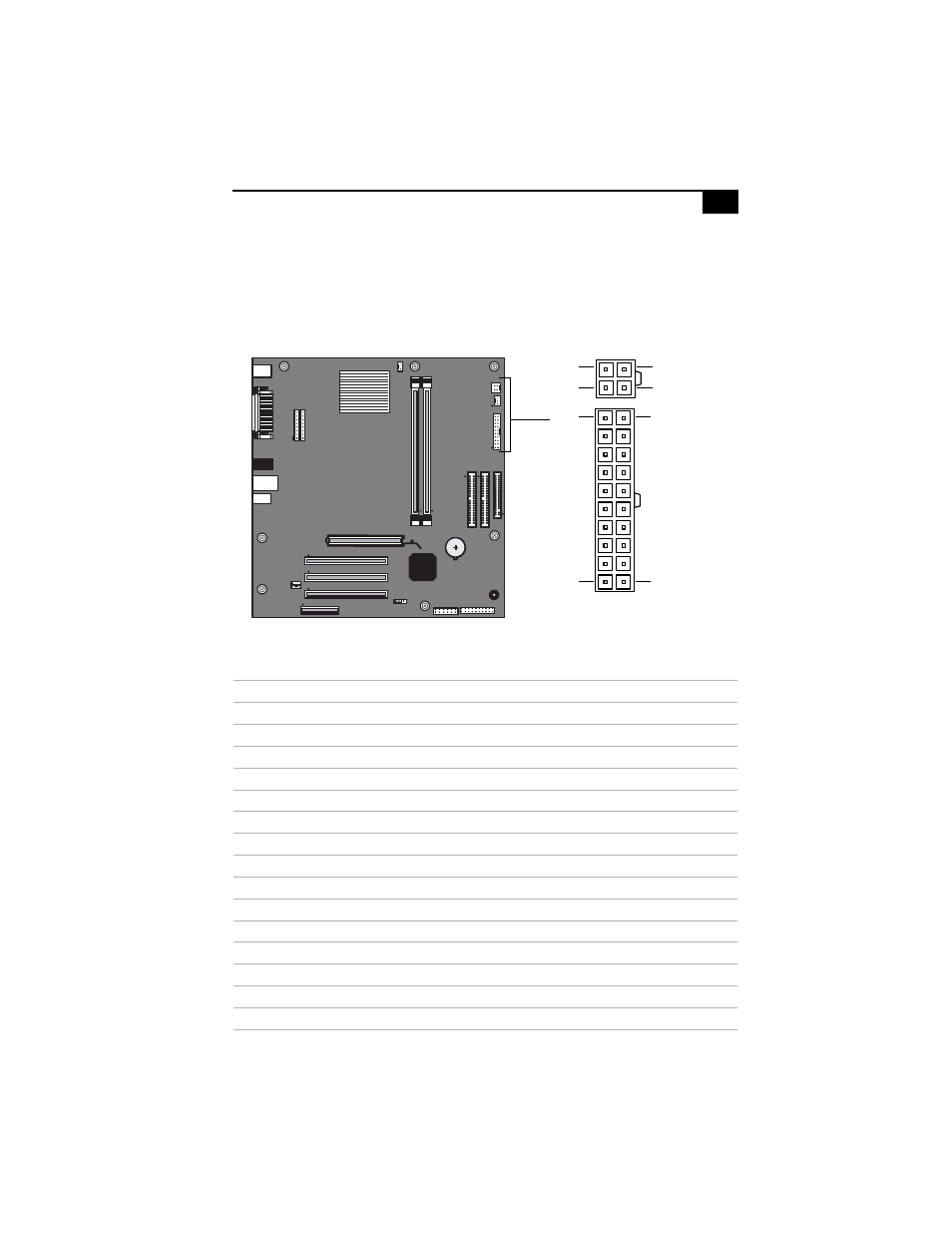

Power Supply and Aux Power Headers
The power supply header on the system board connects to the power
supply header labelled P1.
Power Supply header
Pin
Signal Name
1
+3.3 V
2
+3.3 V
3
Ground
4
+5 V
5
Ground
6
+5 V
7
Ground
8
PWRGD (Power Good)
9
+5 VSB
10
+12 V
11
+3.3 V
12
-12 V
13
Ground
14
PS-ON# (power supply remote on/off control)
15
Ground
10
1
11
20
1
2
3
4
