Ntp time source test, Ntp dialup – Symmetricom S100 User Manual
Page 68
60
S100 User Guide – Rev. D – June 2005
SyncServer S100
NTP Time Source Test
The NTP Server Test dialog lets you test the servers you designated in the NTP
Relationships panel (see
“NTP Relationships” on page 58
.
Host -
• All
• 127.127.40.0 (onboard GPS/IRIG reference clock driver)
• 127.127.18.3 (NIST ACTS reference clock driver)
• localhost
Options - Use the checkbox to enable
Verbose Output.
NTP Dialup
In the following dialog, enter or paste in your
modem phone number.
Then click
Submit.

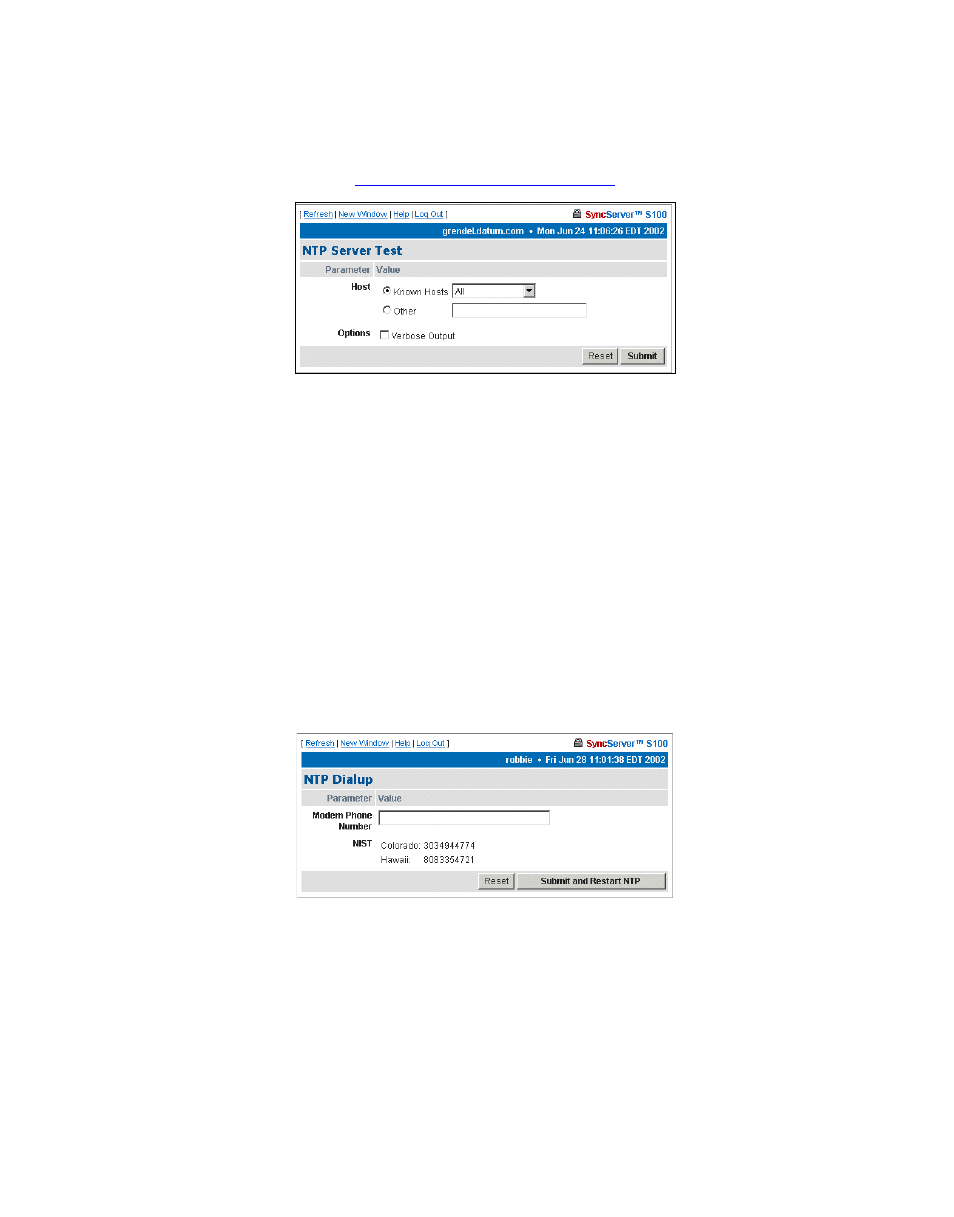

Figure 4-6: Testing the NTP Time Source
Figure 4-7: NTP Dialup
