S100 User Guide – Rev. D – June 2005 29
2
5
3
3. Now, verify the S100’s IP address. At the Unix command prompt, at the command line
( Figure 3-6 ), type IFCONFIG and press . The following appears ( Figure 3-10 ).

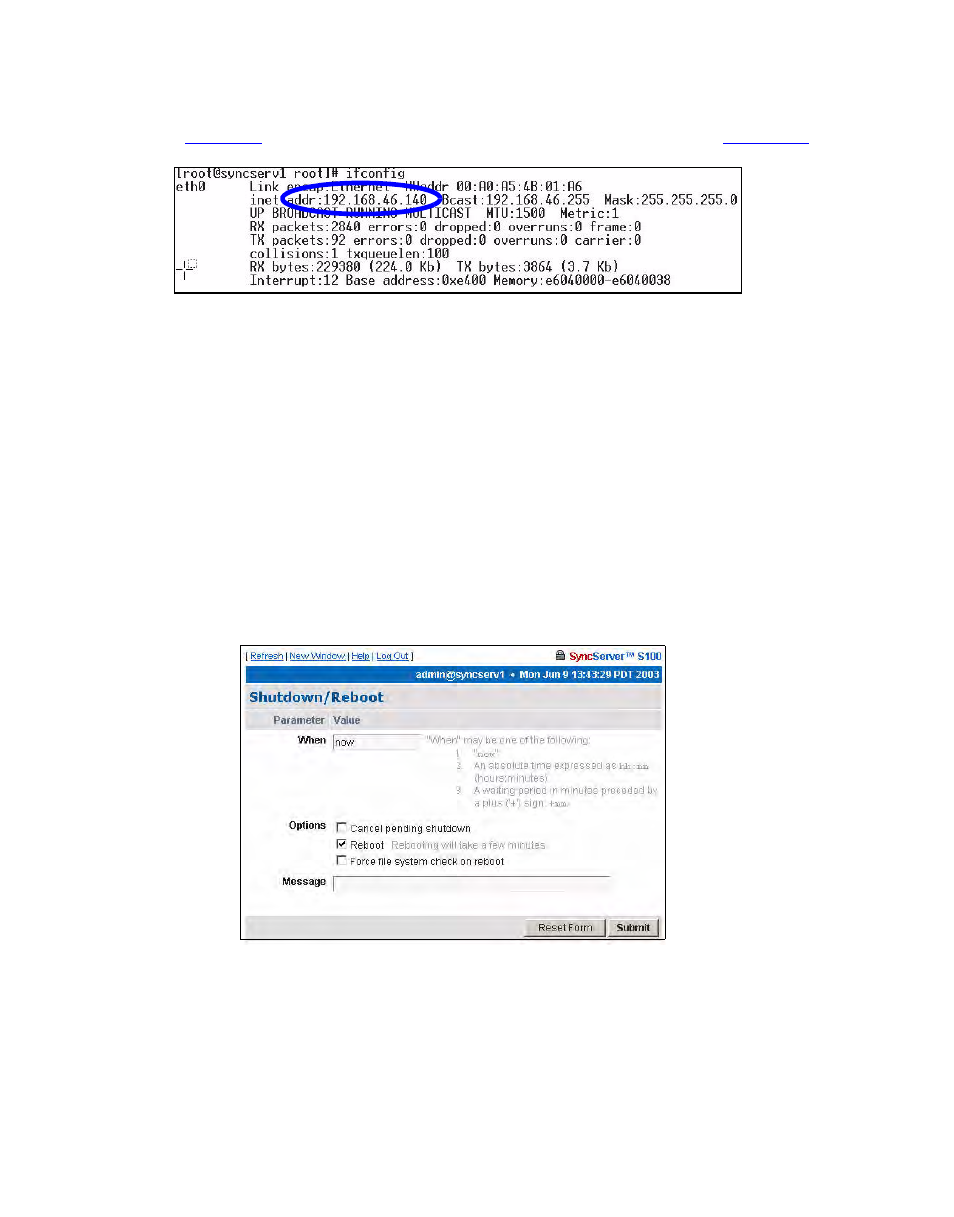

Figure 3-10: Linux IP Confirmation Screen
4. Open your web browser, enter the IP address in the browser Address field and
press. The Configuration Wizard link appears. Use the Wizard to complete the
S100 configuration process.
Turning Off Your S100
Normal
If you have configured the unit correctly and it is running normally, select (Administrative
Menu) Administration>Shutdown/Reboot from the S100’s web interface. The following screen
appears:
Figure 3-11: S100 Shutdown Screen
If you are using SSH or TTY, at the prompt type: shutdown -h now.
