Setting Up the Hardware
On the S100 Front Panel
Complete the following steps before turning on the power:
1.
Connect the 9-pin serial cable from the PC workstation to the S100 serial port. You are
doing this so to configure the S100 using a PC; see
“Establishing A Serial Connection”
in the next section.
2.
Connect the RJ45-terminated Ethernet cable to one or both network ports on the S100.
Note:
If only one network connection is required, use the
left
Ethernet port (
eth0
). The
two USB ports are not functionable on this S100 release.
outputs UTC only.

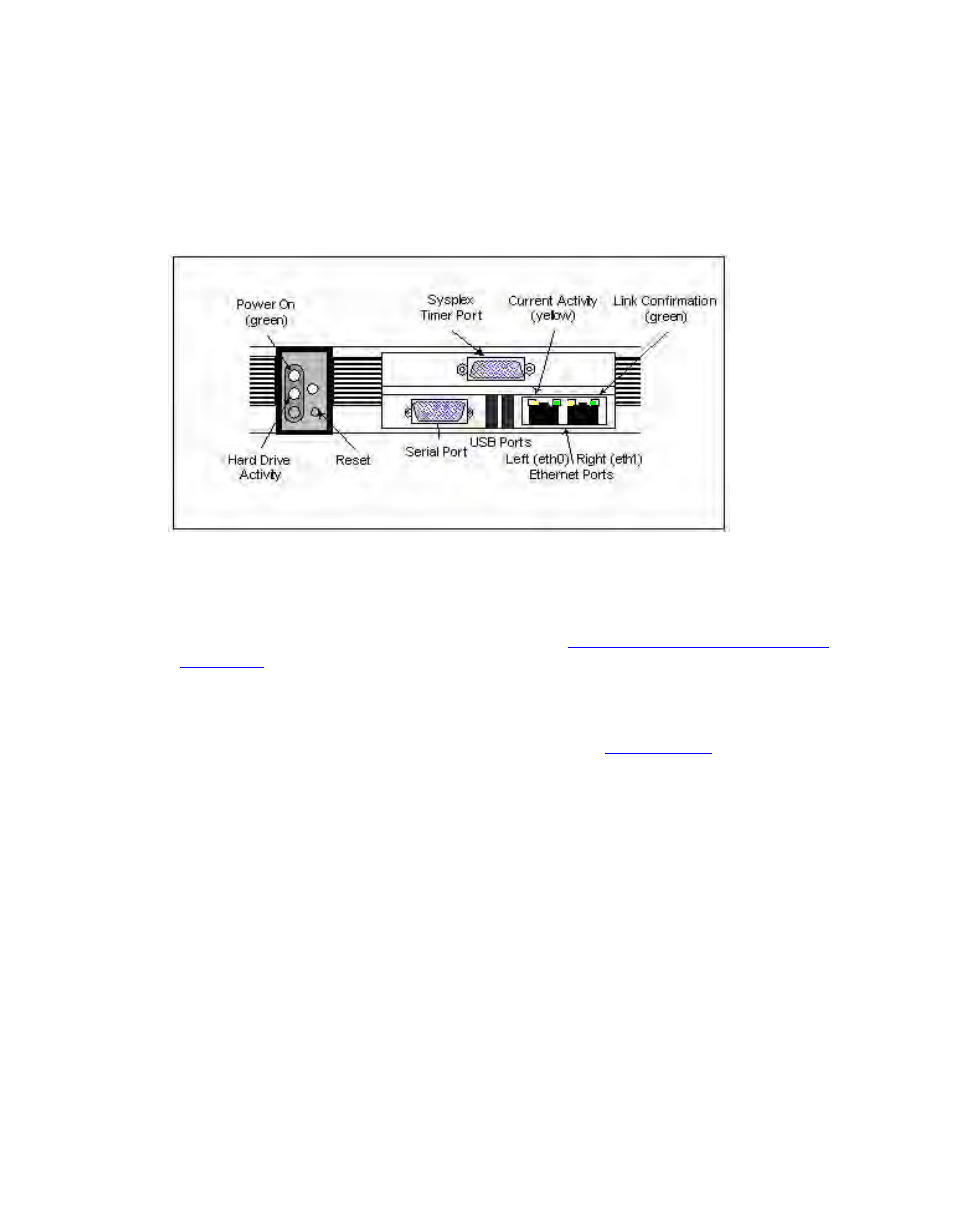

Figure 3-2: S100 Front Panel Close-up
