Strobe/GPIO Circuit

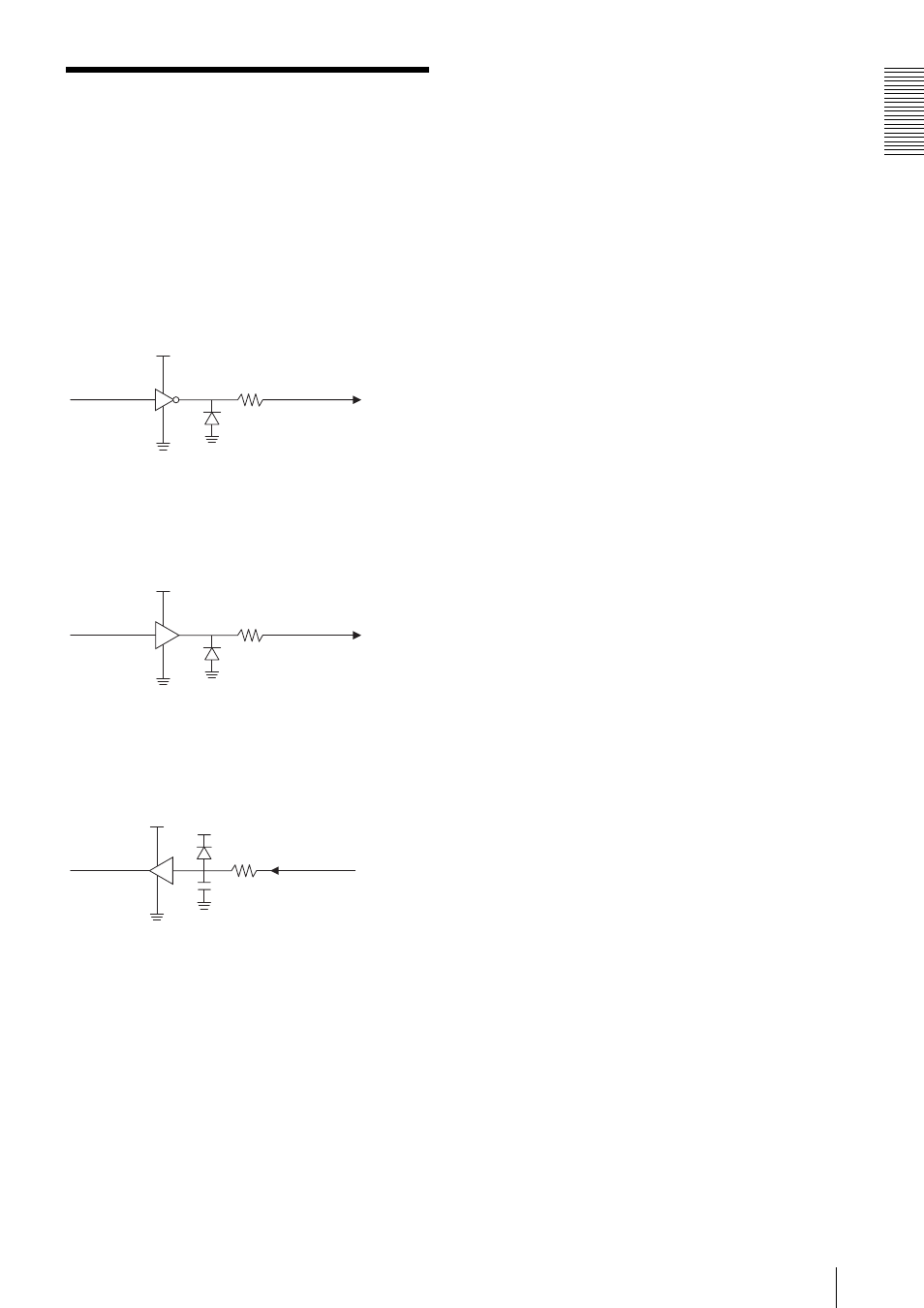

Strobe Output / GPIO Circuit
The Strobe output and GPIO circuit is configured as
follows. Be sure to take note of this before use.
Strobe output circuit
This is a strobe output circuit diagram.
This is a standard CMOS level output (5 V).
The camera is equipped with a protective resistor of
220
Ω. Be sure to confirm the output waveform before
use.
GPO1/2 output circuit
This is a GPO1/2 output circuit diagram.
This is a standard CMOS level output (5 V).
Equipped with a protective resistor of 2.2 k
Ω. Be sure to
confirm the output waveform before use.
GPI1/2 input circuit
This is a GPI1/2 input circuit diagram.
Compatible with standard TTL level input.
Equipped with a protective resistor of 10 k
Ω. Be sure to
confirm the input waveform before use.
Strobe output
terminal
220 Ω
GPO1/2
output circuit
2.2 k Ω
GPI1/2 input
circuit
10 k Ω
10 pF
