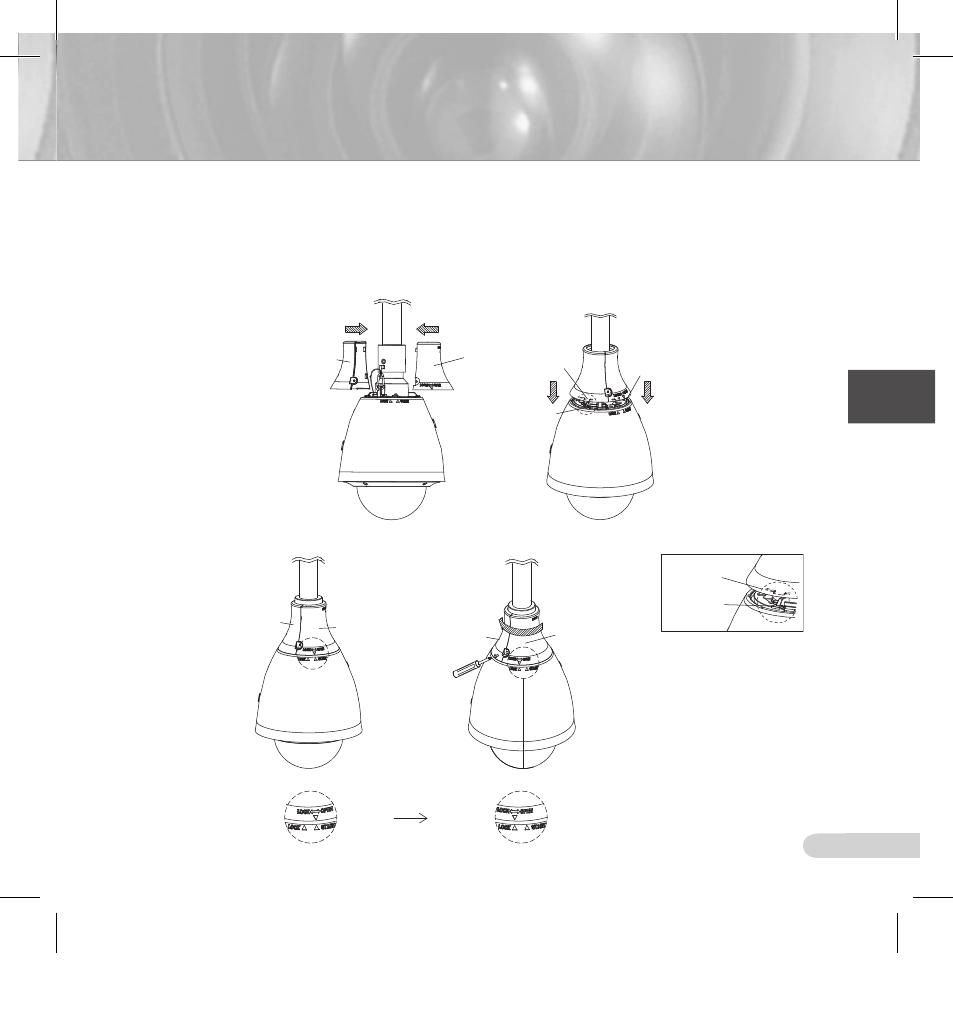

6. Couple the Cover Front with the Cover Rear.
In th next step, align the Arrow mark on the Cover Rear to face the START label on the
Housing. Install these two parts into the Housing while aligning the Guide Hole of these
parts with the Guide of the Holder Housing. Finally, turn these two parts so that the arrow
mark on the Cover Rear is aligned with the LOCK label of the Housing. Tighten up the screw
(M4xL8, fitting) as shown in the figure.
HOLDER HOUSING
GUIDE HOLE
GUIDE
GUIDE HOLE
GUIDE
COVER FRONT
COVER FRONT
COVER REAR
COVER REAR
COVER FRONT
COVER REAR
