❚ Installation precautions
. Make sure that the installation site can sufficiently support a minimum of four times the net
weight of the SCC-C74��(P)/C74�5(P) SmartDome camera and other accessories. C74��(P)/C74�5(P) SmartDome camera and other accessories. (P)/C74�5(P) SmartDome camera and other accessories. C74�5(P) SmartDome camera and other accessories. (P) SmartDome camera and other accessories.
. Keep persons away from the installation area, as there is a risk of falling objects.
Also, move valuables to a safe location before installation.
❚ Installation

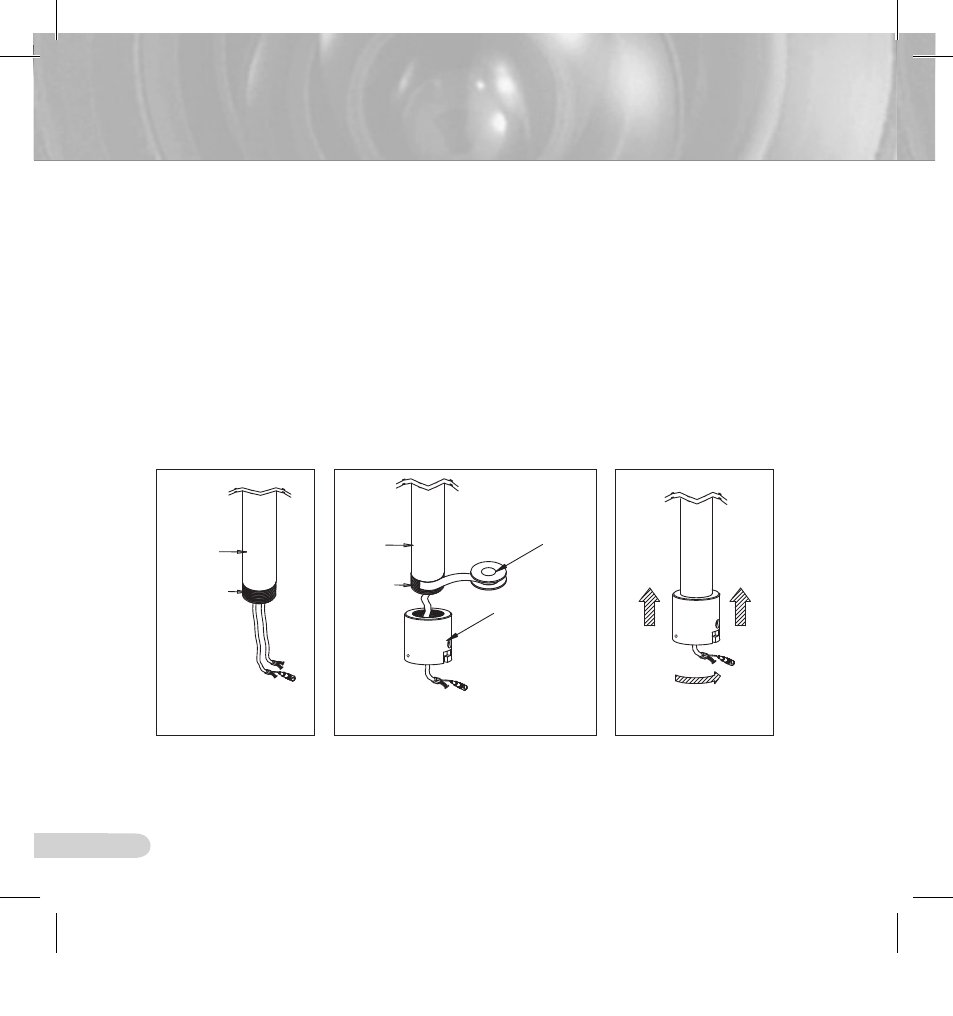

. As in the below, pull out the cables in connection with the camera through the pipe
into which the ROD COUPLING is installed. Refer to and wrap the screw part of the
Pipe with the Teflon Tape. In the next step, insert the Cables through the center of the ROD
COUPLING and pull them out to the opposite side. Fix the ROD COUPLING to the end of
the processed Pipe with a 1.5” NPT screw thread by turning it clockwise, as described in the
.
PIPE
PIPE
1.5" NPT
1.5" NPT
< PIC 1 > < PIC 2 > < PIC 3 >
TEFLON TAPE
ROD COUPLING
