ARTS M ARATHONER G OLD & S ILVER S TAR G AS C ONVECTION O VENS

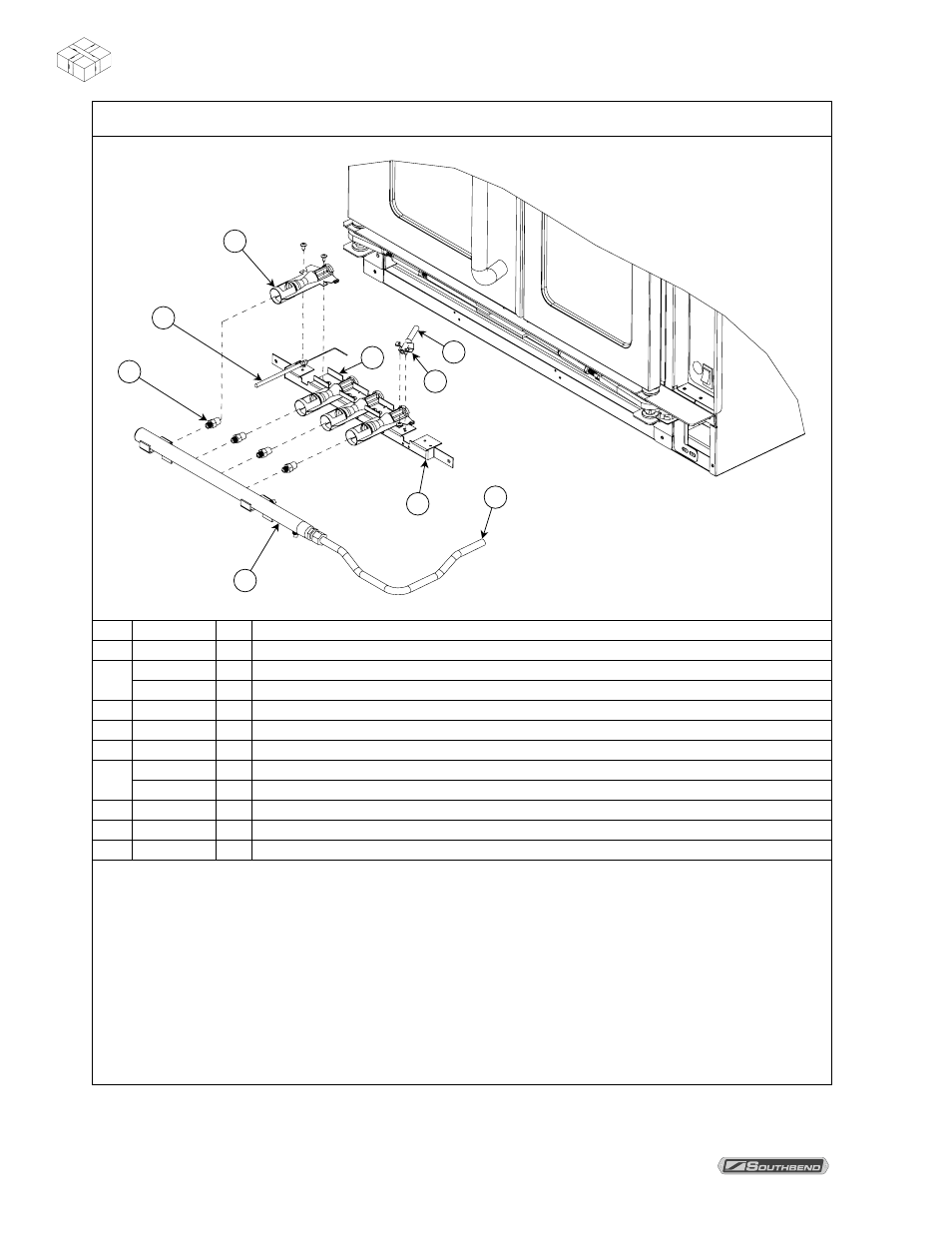

Burner Compartment Parts
1
2
3
4
5
6
7
8
9
Key Part Number Qty Description
1 1175070 1 Manifold weld assembly
2 1176032 * Hood, fitting, orifice, #47, nat
1176034 * Hood, fitting, orifice, #55, prop
3 1175127 1 Flame sensor
4 1175067 1 Bracket, burner mounting
5 1175584 ** Deflector, air
6 1177895 1 Clip, ignition alignment (for units built before October 1, 2000)
1183398 1 Clip, ignition alignment (for units built after September 30, 2000)
7 1183200 1 Ignitor, hot surface
8 1175143 * Inshot burner, 2 3/4 center
9 1181934 1 Tube, gas supply. gas, co
* One for each burner:
• Model GS/12 has 3 (for unit built before August 22, 2003), and 5(for unit built after August 22, 2003).
• Model GB/12 has 4.
• Model GS/15 has 4 (for unit built before August 7, 2003), and 5(for unit built after August 7, 2003).
• Model GB/15 has 5.
• Model SLGS/12 has 3 (for unit built before August 7, 2003), and 4(for unit built after August 7, 2003).
• Model SLGB/12 has 4.
• Models BGS/12 & BGSP/12 has 3.
**One less than the number of burners.
