Step 6: Installation of Optional Open Rack Storage
An option for single-deck Marathoner Gold ovens is to have open rack storage below the oven. The
following describes how to assemble this option. All holes are pre-drilled for the screws provided.
1. Attach the legs to the oven as described in installation Step 2b on page 11.

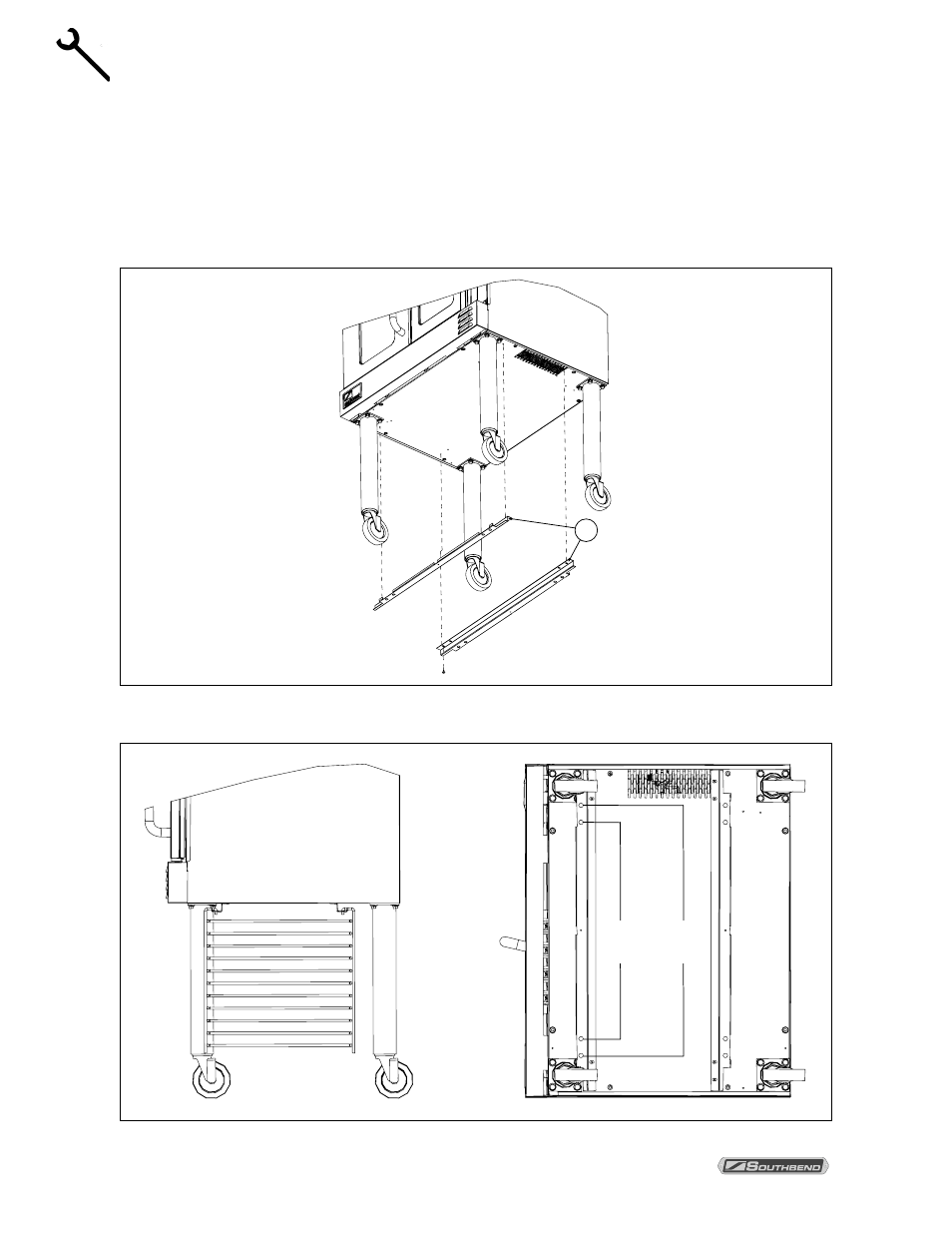

2. Attach the two frame hangers (items “A” in the following drawing). The flanged side of each rack
hanger must be on the side of the hanger closest to the edge of the oven.
INSTALLATION
A
3. Hang the rack guides from the frame hangers, which have two sets of holes. Use the outside holes if
you will be storing racks; use the inside holes if you will be storing pans (see the following drawing).
Holes
for
RACKS
Holes
for
PANS
P
AGE
18 O
PERATOR
’
S
M
ANUAL
