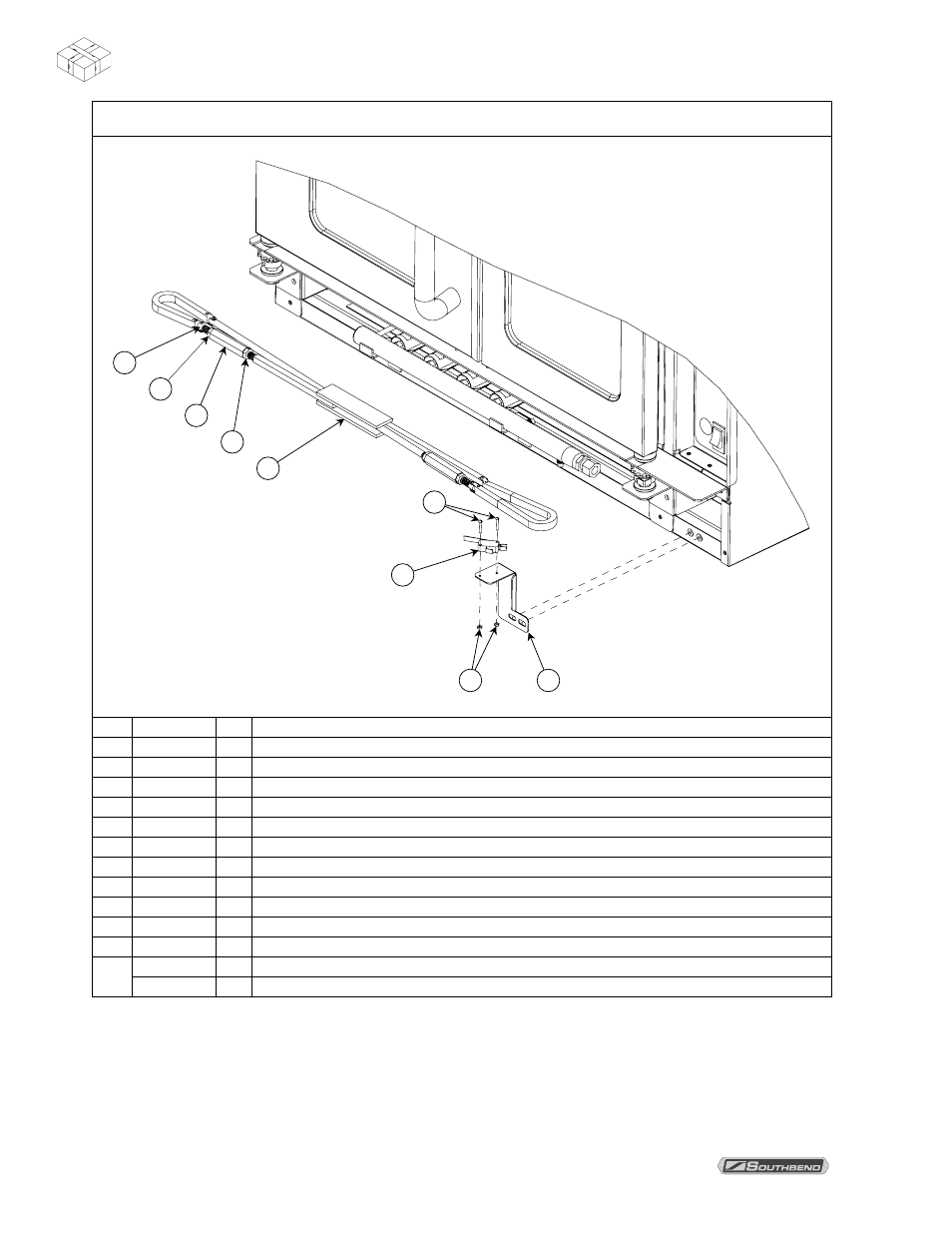

Door Chain Mechanism Parts
1
2
3
4
5
7
9
6
8
Key Part
Number Qty Description
*
1179937
1
Complete door assembly(Items 1 – 5, chains, and master links)
1 1164523 4 Pivot
rod
2
1164551
2
Nut, 3/8-16, hex head, right hand threaded
3
1164522
2
Turnbuckle, 2 3/4" long, brass
4
1164552
2
Nut, 3/8-16, jam, left hand threaded
5
1175214
1
Door mechanism, weld asm
* 1175212 2 Door
chain
* 1029501 4 Master
link
6
1172326
2
Screw, #4-40 x 3/4, zinc plated
7
1177567
1
Switch, door, spdt, 15 amp
8
1172327
2
Nut #4-40, zinc plated, hex
9
1181956
1
Bracket, door switch (for units built before March 19, 2001)
1183358
1
Bracket, door switch (for units built after March 19, 2001)
