Components – Simplicity 1691620 User Manual
Page 7
5
Components

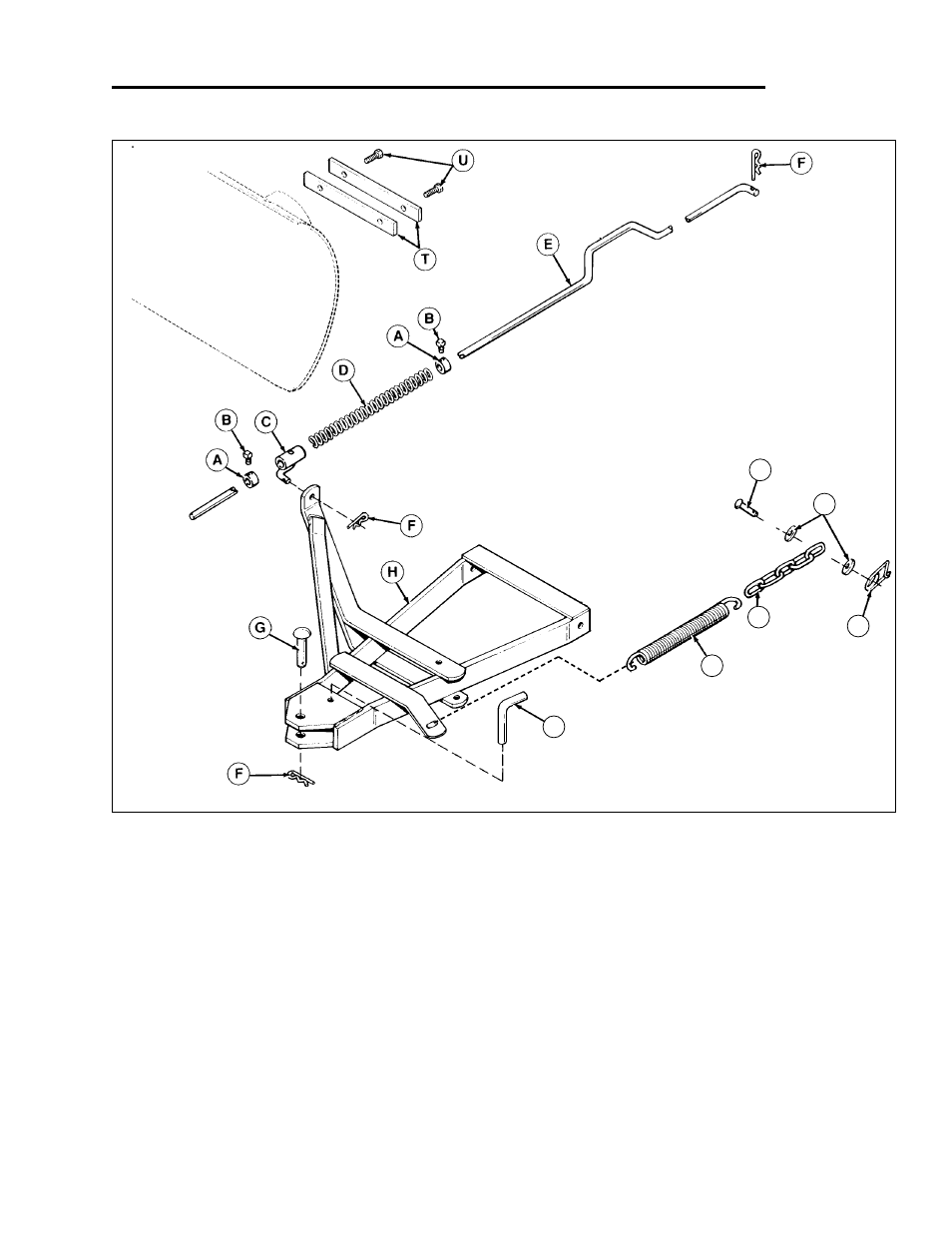

Figure 3A. Mfg. No. 1692624 Push Bar & Lift Rod Components
A. Set Collar (Qty. 2)
B. Setscrew, 5/16 x 2 (Qty. 2)
C. Rod Guide Assembly
D. Spring
E. Lift Rod
F. Spring Clip (Qty. 3)
G. Clevis Pin, 3/8 (Qty. 2)
H. Push Bar Assembly
I.
Hitch Pin
J. Plain Washer 5/16
K. Safety Clip
L. Chain
M. Spring
N. Pivot Pin
I
J
K
M
L
N
Regent/500/2500 Series Parts
Push Bar Assembly
Spring Assist & Chain Assembly
Lift Rod Assembly
