NOTE: Two lift rods are packaged with the
Broadmoor/LT/1600/2600 & Landlord/GT/1700/2700
hitch assembly. Use the correct lift rod for manual or
electric lift as shown in Figure 2.
7. Assemble lift rod per Figure 2 or 3.
8. See Figure 14. Insert prong of rod guide (A)
through hole in upright of push bar (B), and secure
with spring clip (C).
9. Electric Lift Units: See Figure 15. If your tractor
is equipped with an electric lift, install the lift lever
extension assembly (D) to the lift arm (A) as
shown. Secure with clevis pin (F) and spring clip
(G) provided.
10. Manual Lift Lever Units: See Figure 16.
Connect rear of lift rod (A) to manual lift lever (B),
and secure with spring clip (C).
11. Perform Lift Rod Adjustment, page 14.
12
Installation

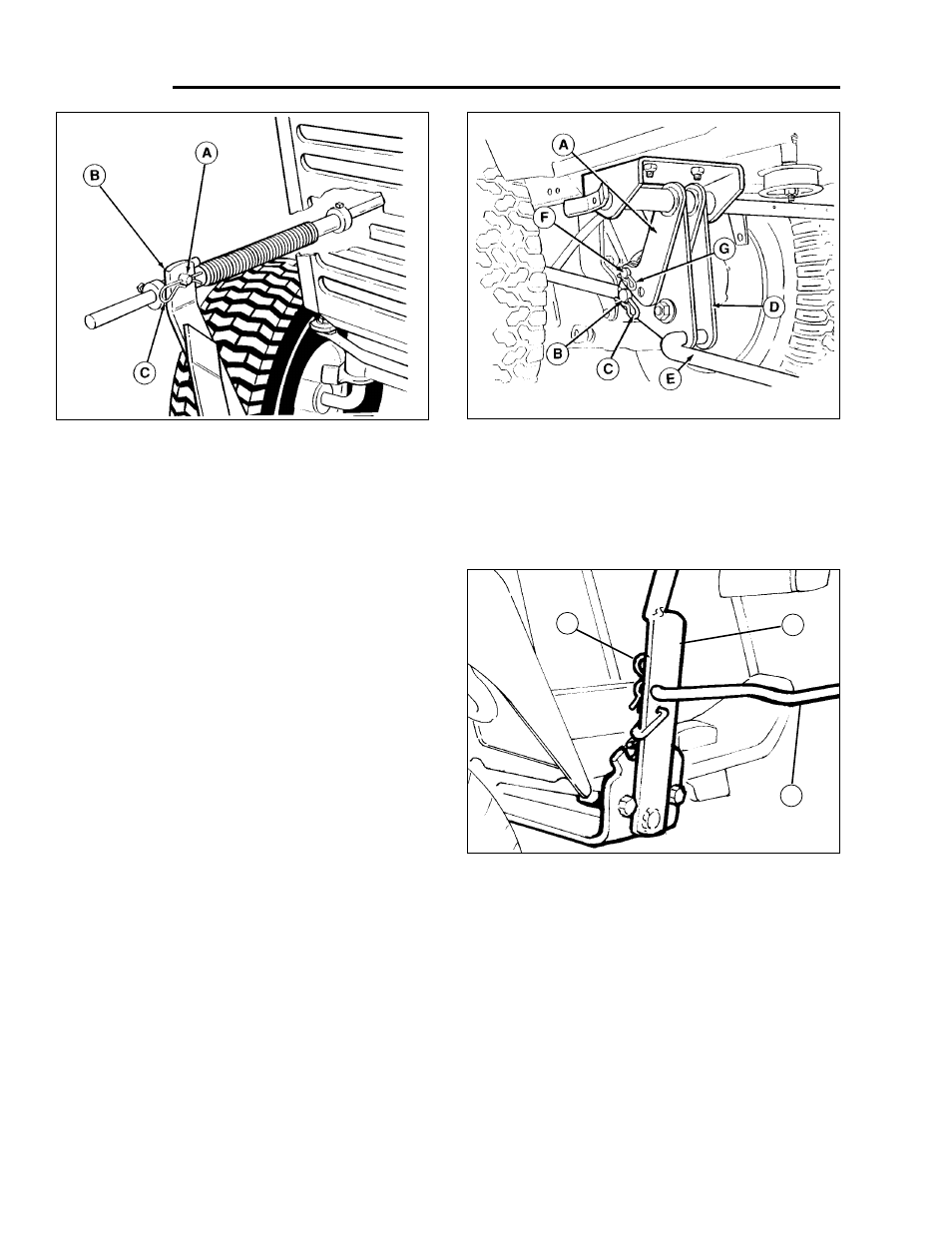

Figure 14.
A. Rod Guide
B. Push Bar
C. Spring Clip Figure 15. Electric Lift Bracket
A. Lift Arm
E. Front Attachment
B. Clevis Pin Lift Rod
C. Safety Clip F. Clevis Pin
D. Lift Lever G. Spring Clip
Extension Assy. H. Rear Attachment
Lift Rod (Optional)
Viewed from Right Side of Tractor
Figure 16. Installing Lift Rod to Manual Lift Lever
A. Lift Rod
C. Spring Clip
B. Manual Lift Lever
B
A
C
