Components
Broadmoor/LT/1600/2600, & Landlord/GT/1700/2700 Series Parts

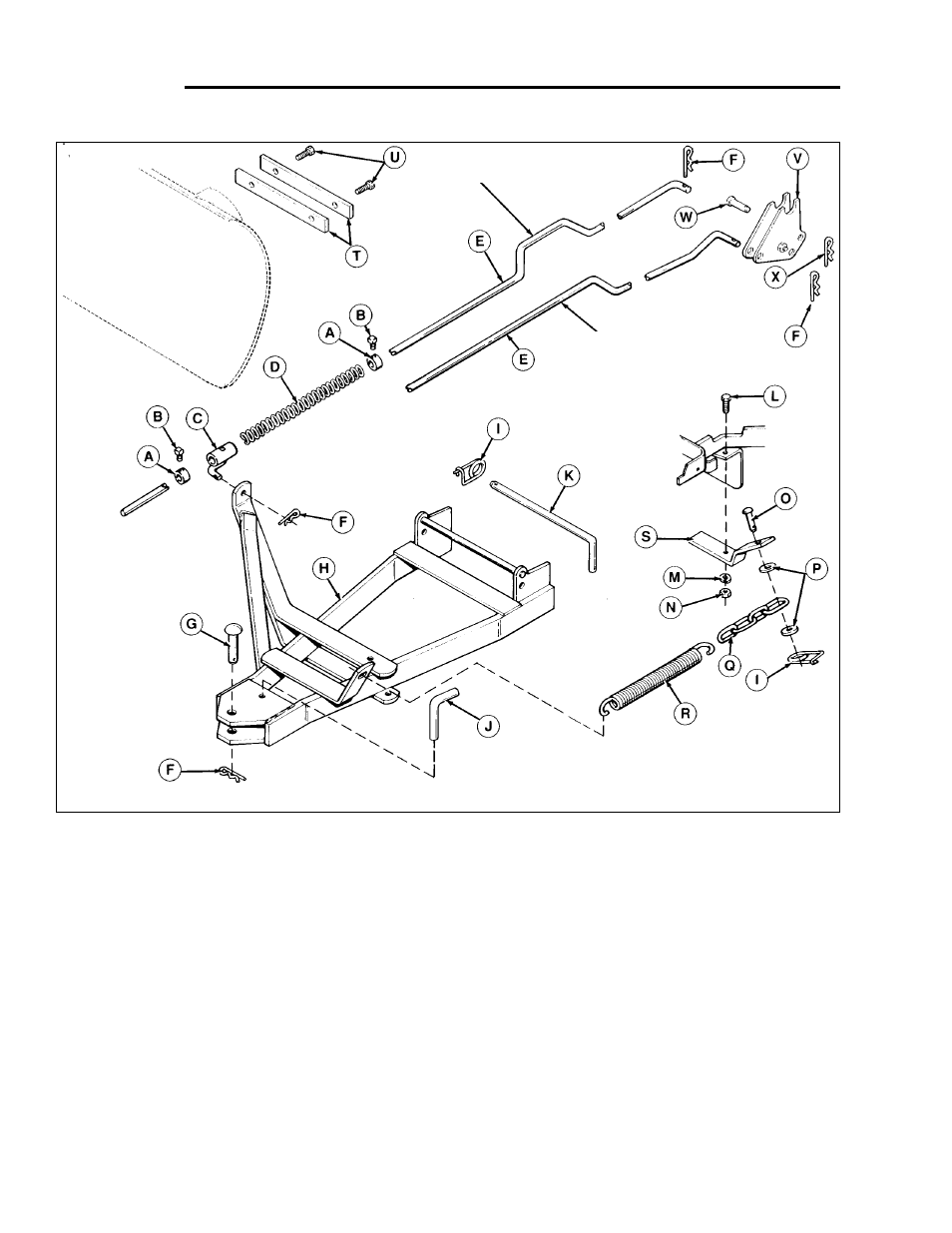

Figure 2. Mfg. No. 1692039 Push Bar & Lift Rod Components
A. Set Collar (Qty. 2)
B. Setscrew, 5/16 x 1/2 (Qty. 2)
C. Rod Guide Assembly
D. Spring
E. Lift Rod, (Manual or Electric Lift)
F. Clip, Spring (Qty. 3)
G. King Pin
H. Push Bar Assembly
I.
Safety Clip (Qty. 2)
J. Pivot Pin
K. Latch Rod (Qty. 4)
L. Hex Capscrew, 5/16-18 x 1
M. Lockwasher, 5/16
N. Full Hex Nut, 5/16-18
O. Hitch Pin
P. Plain Washer, 5/16 (Qty. 2)
Q. Chain
R. Spring
S. Spring Anchor Bracket
T. Bar Stop (Qty. 2)
U. Taptite Screw, 5/16-18 x 1
V. Lift Extension Lever
W. Clevis Pin
X. Spring Clip
Manual Lift Rod
Electric Lift Rod
Push Bar Assembly
Spring Assist & Chain Assembly
Lift Rod Assembly
