11
Installation
All Models

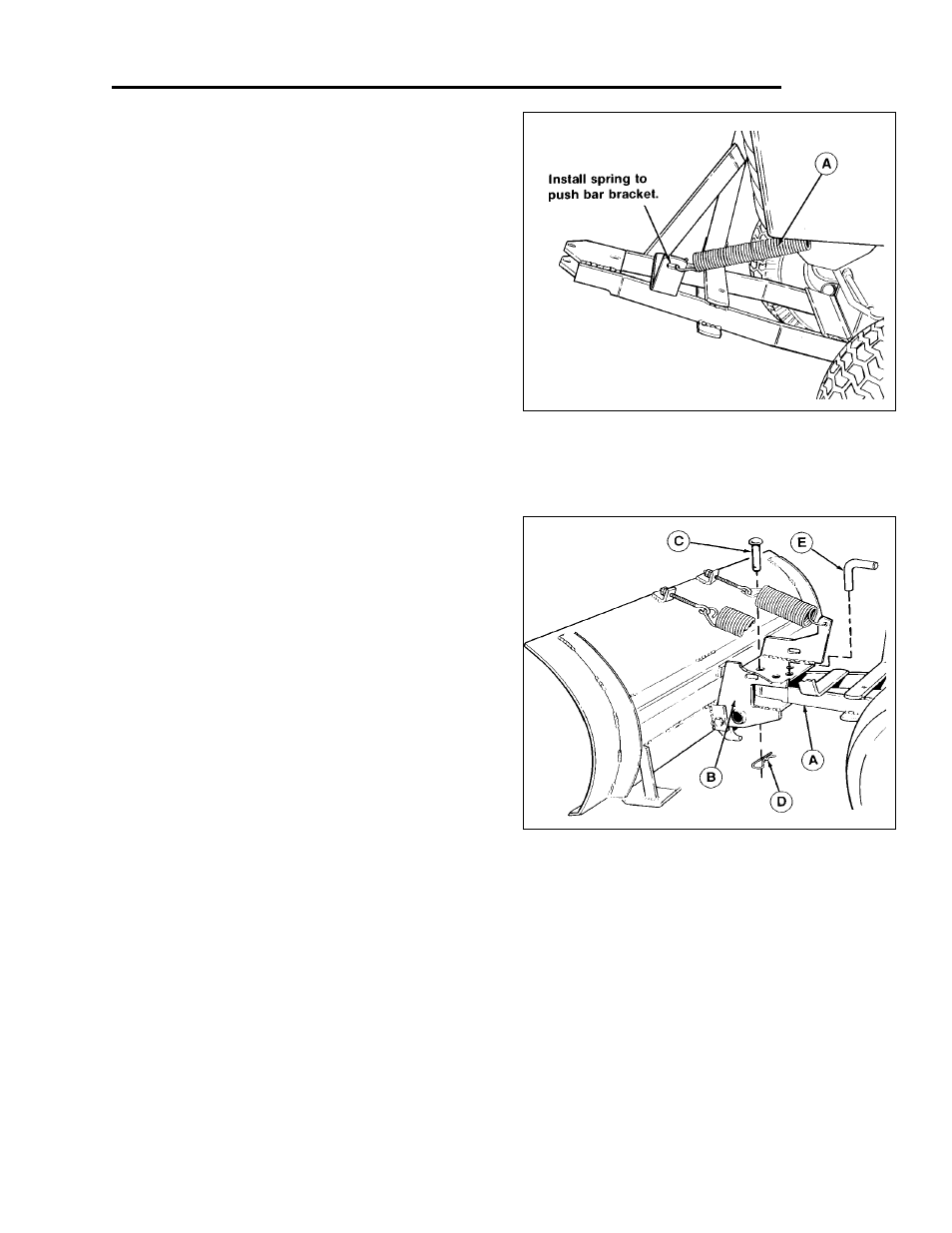

4. See Figure 12. Raise the push bar and attach the
spring (A) to the push bar bracket and the open
end link of the 4-link spring assist chain.
Figure 12.
A. Spring
Figure 13. Dozer Blade Assembled and Installed
A. Push Bar
D. Spring Clip
B. Pivot Frame E. Pivot Pin
C. King Pin
5. See Figure 13. Insert front of push bar (A) into
pivot frame (B) on rear of blade. Then install king
pin (C) down thru front holes in hitch and pivot
frame. Secure king pin with spring clip (D).
6. See Figure 13. Using the king pin as a pivot, swiv-
el the dozer blade to the desired position (angled
left, straight, or angled right), and align one of the
three rear holes in the pivot frame with the rear
hole in the hitch. Install pin (E) downward through
the aligned holes to lock the blade in the selected
position.
