the template so that the front of the template is
in line with the camera direction.
Caution: Since there is a danger of the product
falling during installation, take care not to allow
anyone to stand below the installation area.

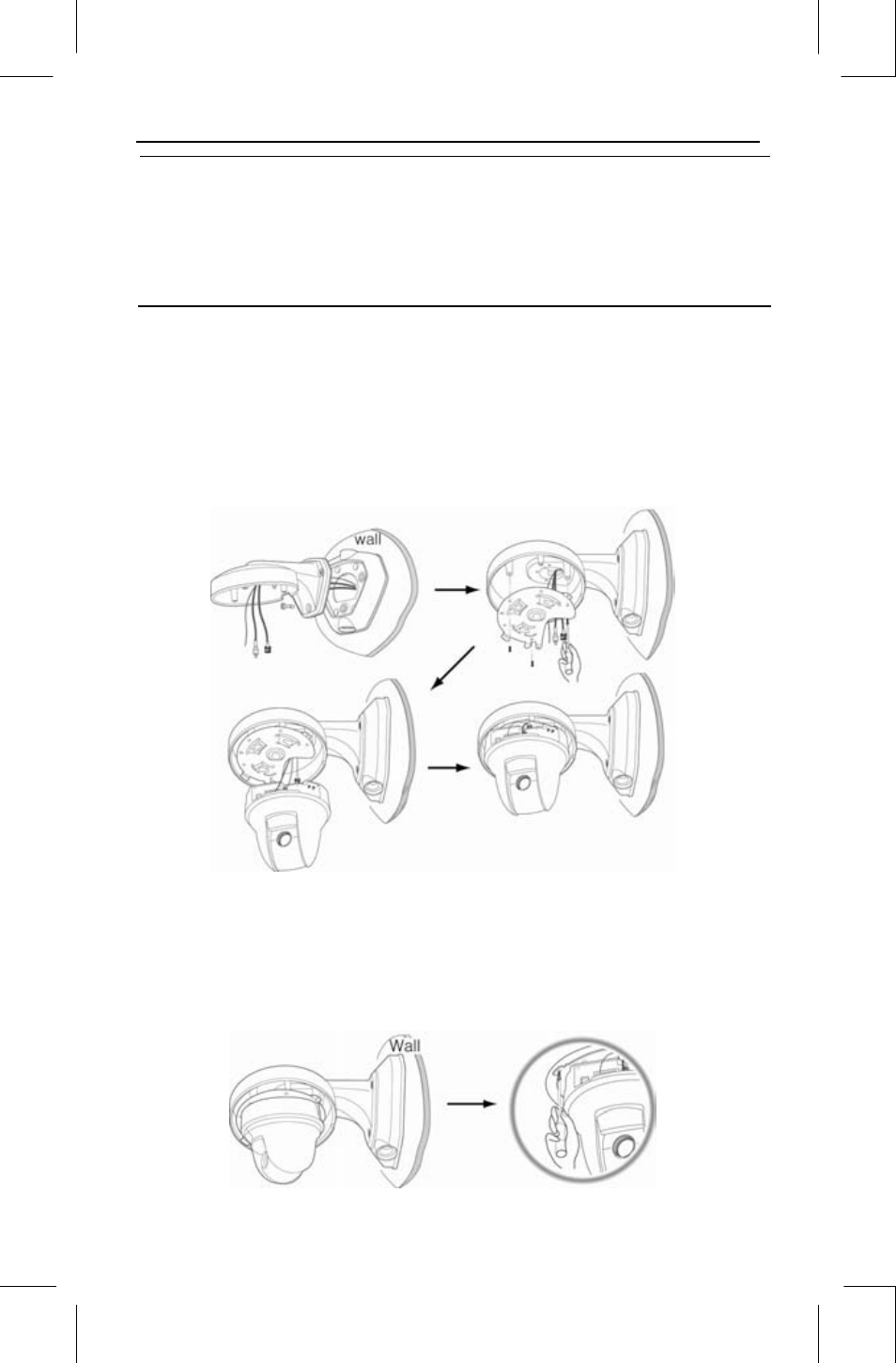

3. Fix the wall bracket and the wall surface attachment installation
bracket onto the wall mount (STB-280PW) with the screws
supplied, as shown in the figure on the right, and connect the
external incoming cables (video cable, network cable and
power cord) to the camera.
4. Assemble the camera, which should already have been attached
to the product installation bracket, to the wall attachment
installation bracket, facing forwards, and fix the camera with
the supplied fixing screw.
