COLOR DOME CAMERA User Guide 8 COLOR DOME CAMERA User Guide 9
Precautions
•Exposuretoaspotlightoranobjectemittingstronglightmaycausesmearor
blooming.
•Ensurethatthepowersourcecomplieswithnormalspecificationsbeforesupplyingit
tothecamera.
Notes
❶ SVD-4700… 2 USER Manual…… 3 …Ø5 Tapping Screw 4EA…… 4 Quick Install Guide…………
5 Wrench… 6 Template… 7 DC12V/500mA Adaptor 8 Installation Video Output Cable
❶ …
7 8
5
6
2 4

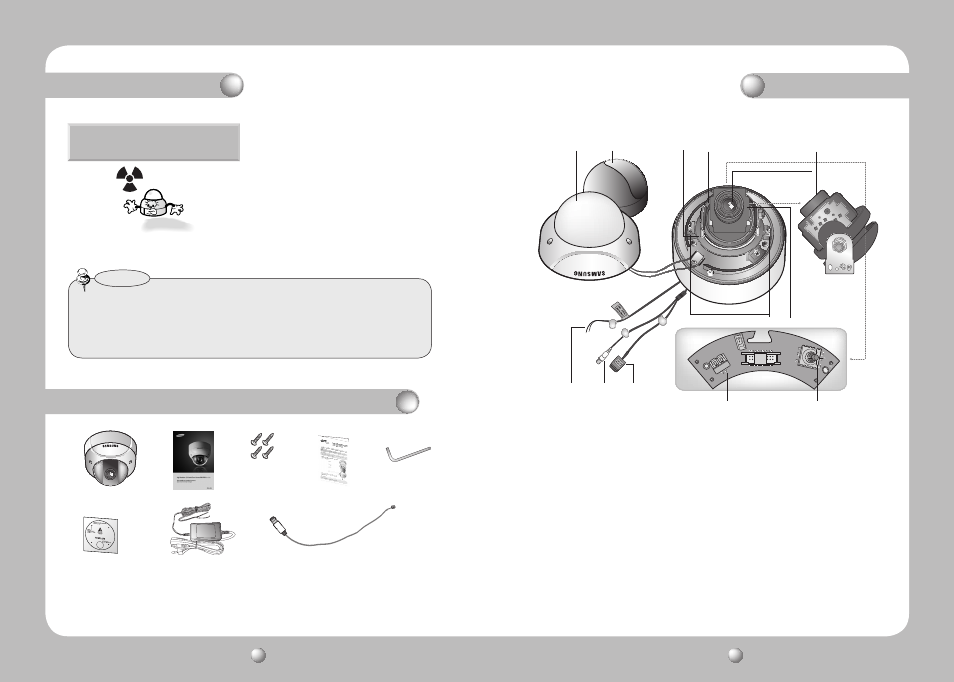

Components and Accessories
Overview
3
Do not expose the camera to
radioactivity.
Radioactivity exposure may damage the
CCD.
Pan Base : Control panning angle of camera.
Rotate Base : Control rotating angle of camera.
12x Zoom Module
Front Cover
Pan Base Holding Screws : Fix panned position.
RS-485 Control Terminal : The detailed decription refers to p14.
Video Output Jack : Video signals are output through this port. Connect this port
to the Video IN port of a monitor.
Power Input Terminal : Connect the power as specified for each model here.
Video Output terminal to Monitor : Used for monitoring of video output when
camera installation.
Funtion Setup Switch : Display the menu on the screen and move the cursor to
four directions to confirm status or after changing a selected item.
Dome Cover
Inner Cover
※ The set for America does not include the power adapter.
❿ … ❾ …
7 … 6 … 8 …
3 … 1 … 2 …
5 … 4 …
⓫ … ⓬ …
