Setup

2

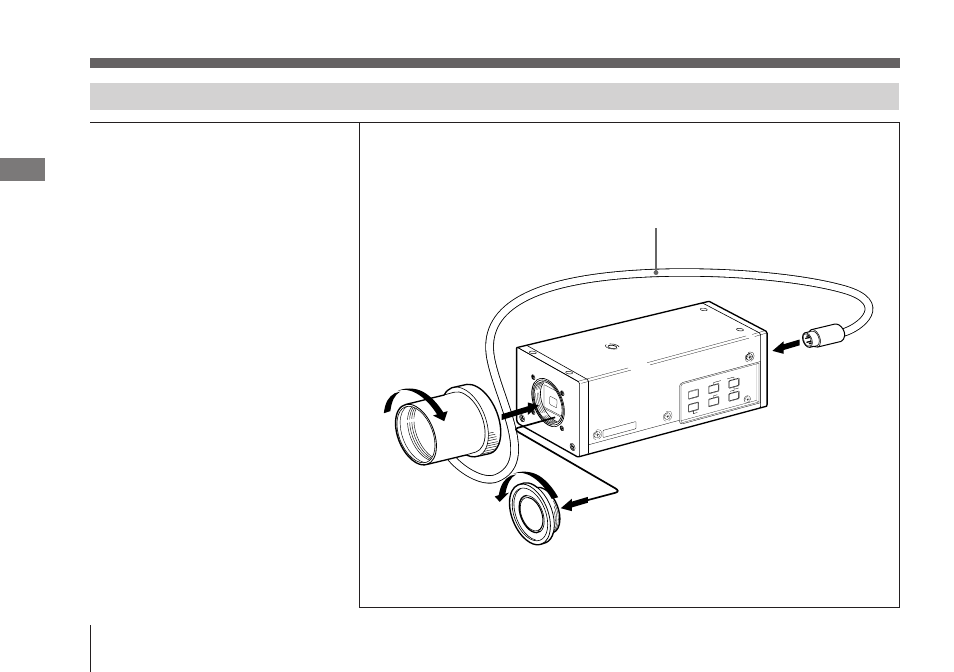

Attaching the Lens

1

Unscrew and remove the lens mount
cap.

2

Attach the lens by screwing it on.

3

When using an auto-iris lens,
connect the lens cord to the LENS
connector. (This step is not required
when using a manual-iris lens.)

3

CCD

COLOR VISION CAMERA MODULE

DONPISHA

MENU—FUNCTION—DATA

UP

WHITE

DOWN

DISPLAY

BARS

Lens cord

3

to LENS
connector

1
