36
Location of Parts and Controls
!£ VIDEO OUT connector (BNC-type)
Outputs the image from the camera as a composite
video signal. Outputs Y signals for external
synchronization.

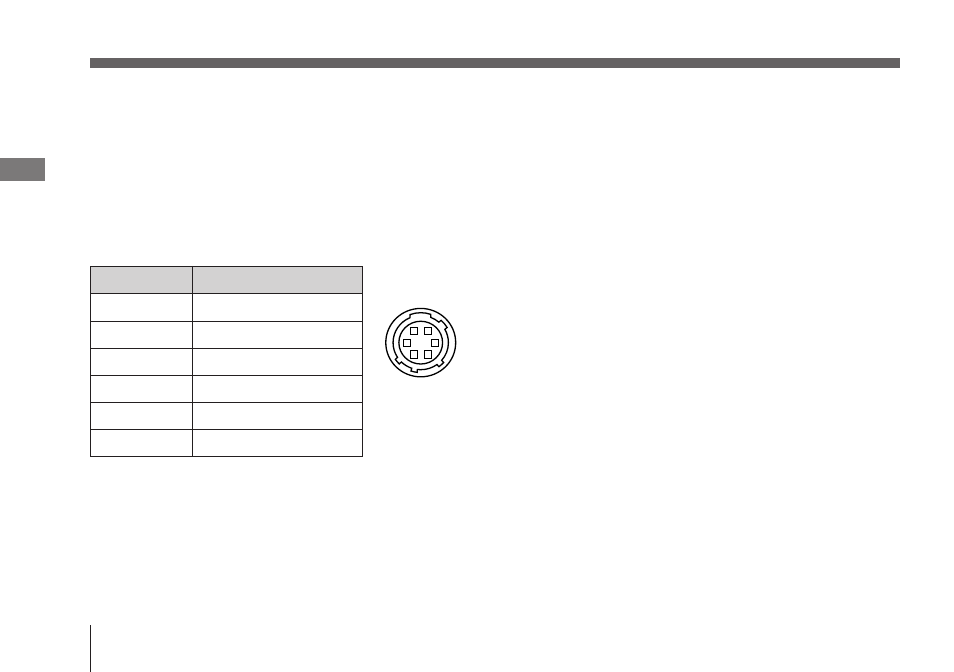

!¢ LENS connector (6-pin)
Used for connecting the auto-iris lens, or used for
external trigger input and WEN output if using the
DONPISHA or restart/reset functions.
2
3 4
5
6 1
1 a)
2
3
4
5
6
FLD/DATA
External trigger input
Ground
WEN output
Video signal output
+12 V
Pin no. Signal
a) Connector for field index pulse output or external menu
control.
