Chapter 4: DISPLAY MODE setting method
4-1) SINGLE SCREEN DISPLAY
Initial display mode of monitor is QUAD A. In case users want to see the camera image at full mode,
select a target camera by turning œ œENTER√ √ SWITCH left and right. After that, press the ENTER
SWITCH and selected camera image will be displayed at full screen. If users turn the œ œENTER√ √
SWITCH left / right at SINGLE DISPLAY MODE at this time, they can see another camera image at
full screen. For example, when users want to see CH1 at FULL MODE after SINGLE -displaying CH2
at QUAD A, please follow the instructions below.
06/01/03 13:14:00
CH1 CH2
CH3 CH4
QUAD A

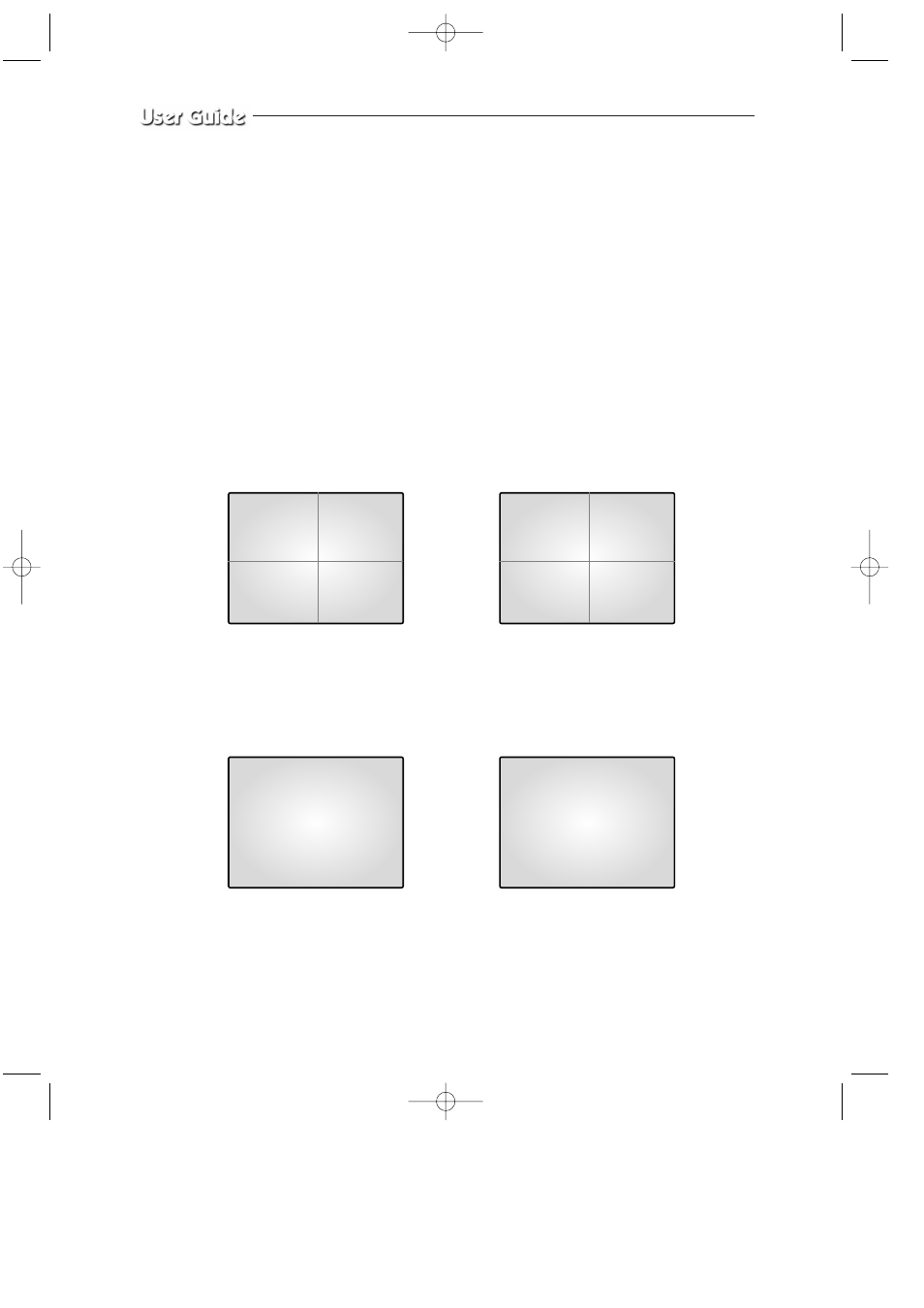

INITIAL DISPLAY STATUS
QUAD A
➯
➯
CH1
➯
Select CH2 by turning œ œENTER√ √ SWITCH
FULL SCREEN DISPLAY of CH2 FULL SCREEN DISPLAY of CH1
Press œ œENTER√ √
SWITCH after
selecting CH2
Display CH1
by turning
œ
œENTER√ √
SWITCH
06/01/03 13:14:00
06/01/03 13:14:00 06/01/03 13:14:00
CH1 CH2
CH1 CH2
CH2
