19

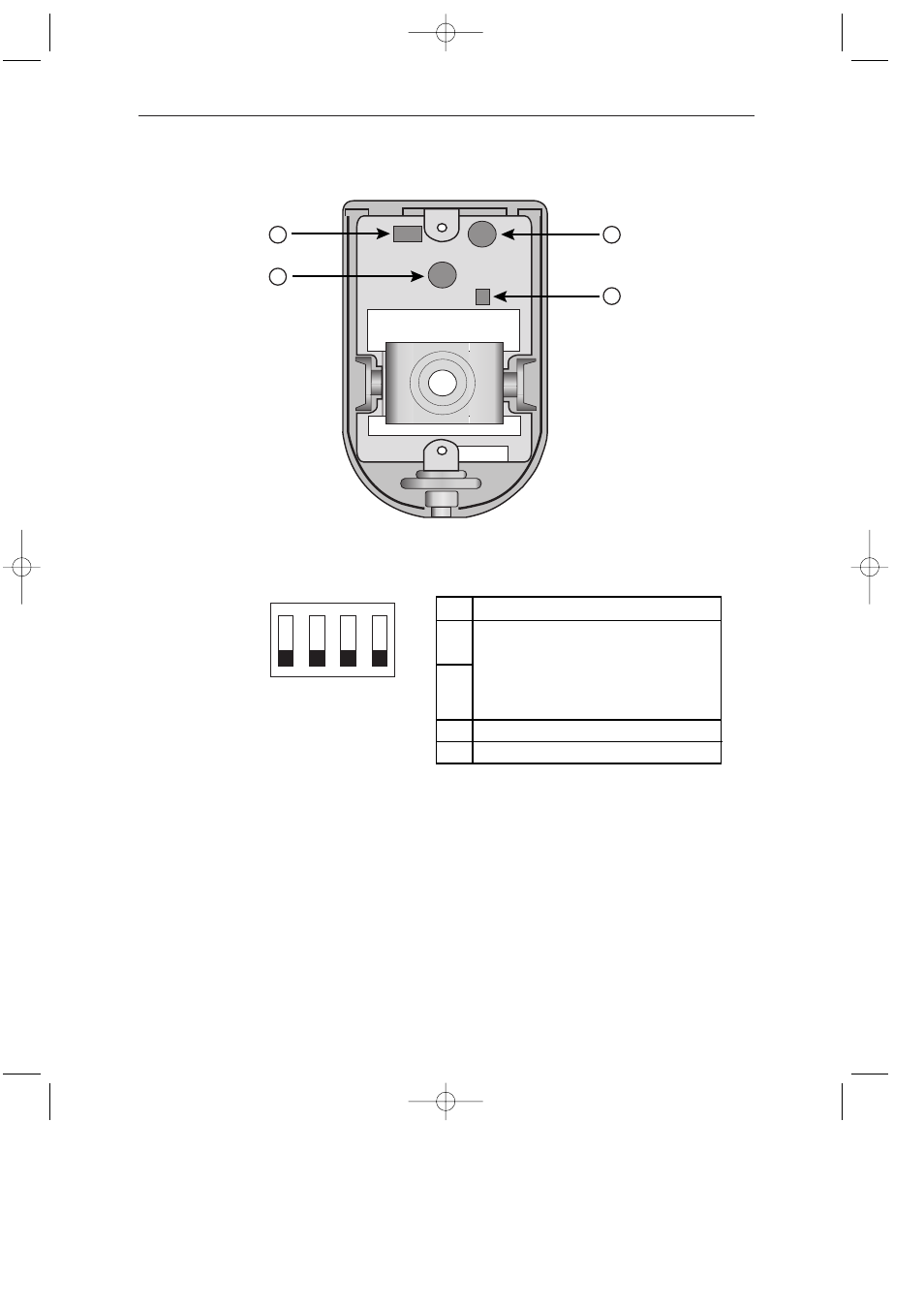

➅ Function Switch
A function switch for the PIR sensor operation.
⑦ PIR Sensor
A thermal heat sensor that detects infrared radiation projected by warm objects.
⑧ Microphone
Capable of picking up all sound in the vicinity of the camera location and transmitting to
the monitor.
⑨ Electronic Relay
Output power is 350V/130mA.
8 6
7
9
ON
S1 S2 S3 S4
OFF
PIN
!
@
#
$
Function
Sensor Sensitivity
On, On : Low
On, Off : Normal
Off, On : Normal
Off, Off : High
Alarm Led On/Off (Sensor On)
Sensor On/Off
(Inside)
! @ # $
