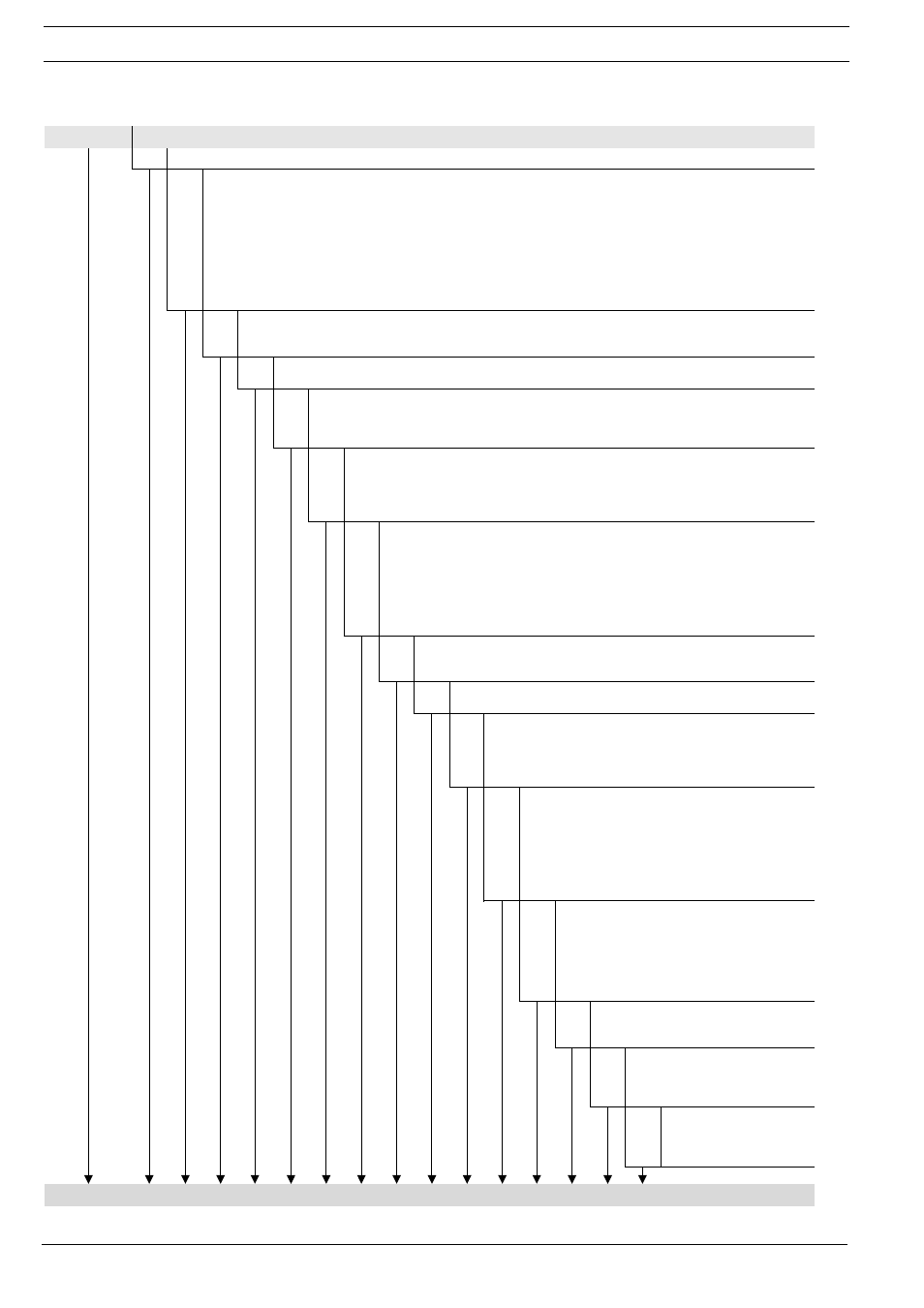

Identcode ordering system
Identcode ordering system
Please enter the identcode on the device label into the grey box below.
S 2 C a
S i g m a C o n t r o l Ty p e ( S 2 C a )
HM
Power end, diaphragm
Pump typ: (figures 1+2 =back pressure [bar],figures 3-5 =feed rate [l/h])
16050 16 bar; 60 l/h
16090 16 bar; 95 l/h
16130 16 bar; 136 l/h
12050* 10 bar; 60 l/h
12090* 10 bar; 95 l/h
12130* 10 bar; 136 l/h
07120 7 bar; 148 l/h
07220 7 bar; 232 l/h
04350 4 bar; 350 l/h * for SST versions, max. 12 bar
Liquid end materials:
PV
PVDF
SS
Stainless steel
Seal material:
T
PTFE seal
Displacement element:
0
Standard diaphragm
1
Double diaphragm with rupture indicator incorporating “Pump stopping” function
2
Double diaphragm with rupture indicator incorporating “Pump alarm” function
Liquid end version:
0
No springs
1
With 2 valve springs,Hastelloy C,0.1 bar
4
With relief valve,Viton
®
seal,no valve spring
5
With relief valve,Viton
®
seal,with valve spring
Hydraulic connection:
0
Standard threaded connector (according to technical data)
1
Union nut and PVC insert
2
Union nut and PP insert
3
Union nut and PVDF insert
4
Union nut and stainless steel insert
7
Union nut and PVDF hose nozzle
8
Union nut and stainless steel hose nozzle
Version:
0
With ProMinent
®
logo
1
Without ProMinent
®
logo
Electrical power supply:
U
1 ph 100-230 V ±10 %, 50/60 Hz
Cable and plug:
A
2 m European
B
2 m Swiss
C
2 m Australian
D
2 m USA
Relays:
0
No relay
1
With fault indicating relay (N/C)
3
With fault indicating relay (N/O)
4
As 1 with pacing relay
5
As 3 with pacing relay
F
Power relay N/C
G
Power relay N/O
Control variant:
0
Manual + external with pulse control
1
Manual + external + pulse control
+ analogue
4
As 0 + process-timer
5
As 1 + process-timer
P
PROFIBUS
®
Access code:
0
No access code
1
With access code
Metering monitor:
0
Input with pulse evaluation
1
Input with permanent contact
evaluation
Stroke length
adjustment:
0
Manual
C
Manual + calibration
S2Ca
___
___
___
___
___
___
___
___
___
___
___
___
___
___
___
Viton
®
is a registered trademark of DuPont Dow Elastomers.
