Scag Power Equipment SCR - Manual (Page 28)

R
Section 6
24

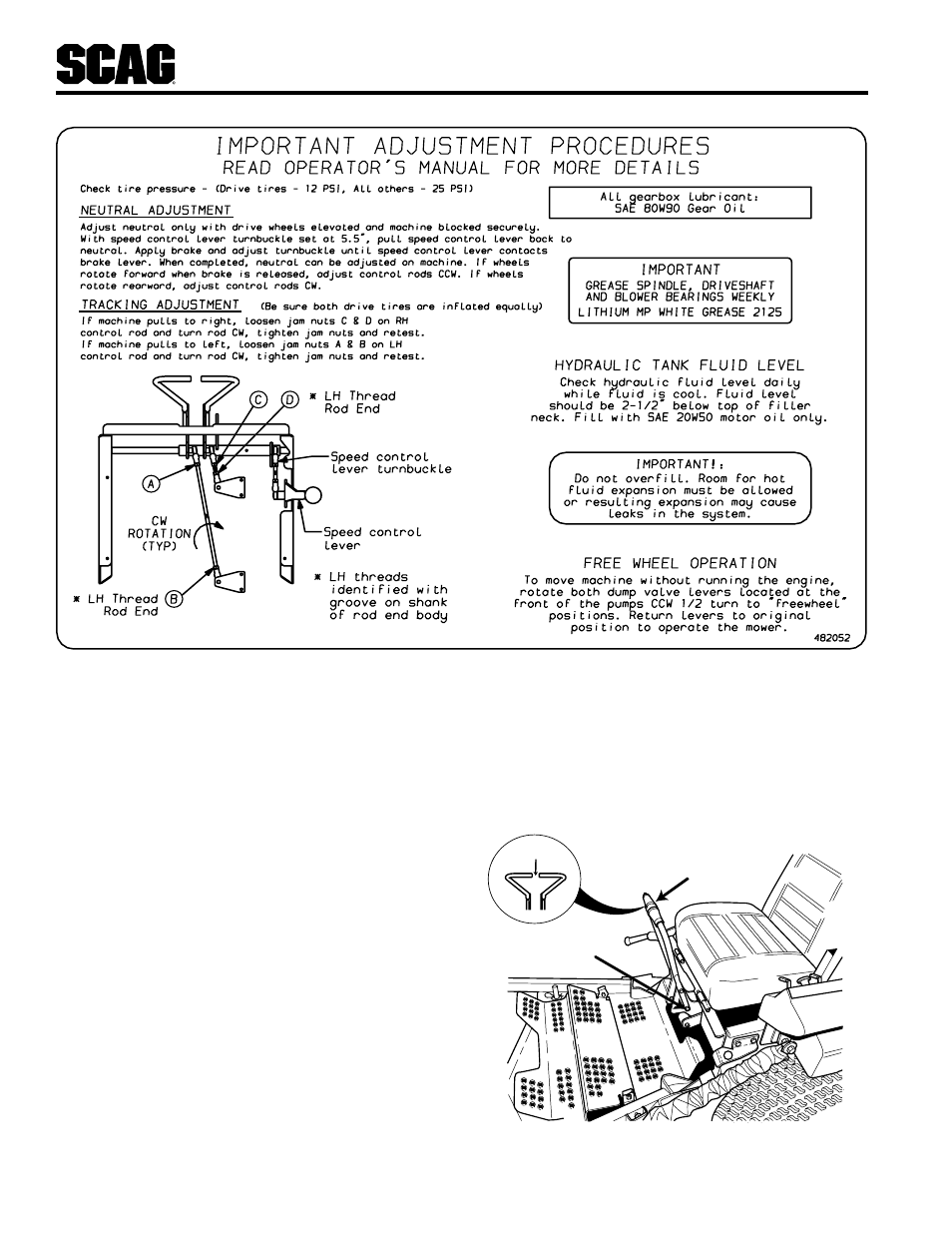

Steering Handle Adjustment
The steering handles should be positioned in line with each
other for easy one-handed control. The handles can then
be adjusted forward or backwards to accommodate the
operator.
Figure 6-6 Steering Handle Adjustment
Keep Handles
Aligned
Adjustment Bolt
SCR 2K SHA
Gap
SCR 2K TAD
Figure 6-5 Drive linkage
Tracking Adjustment
-IMPORTANT-
Before proceeding with this adjustment, be sure that
the tire pressure is correct, that the caster wheels
turn freely, and that the transmission drive belt
tension spring is not broken.
The mower tracking should be adjusted if the machine does
not travel in a straight line during forward travel.
Preform the neutral adjustment before proceeding with the
tracking adjustment.
1. If the machine pulls to the right, loosen the jam nuts
on the right control rod and turn the rod slightly
clockwise, tighten the jam nuts and retest.
2. If the machine pulls to the left, loosen the jam nuts on
the left control rod and turn the rod slightly clockwise,
tighten the jam nuts and retest.
