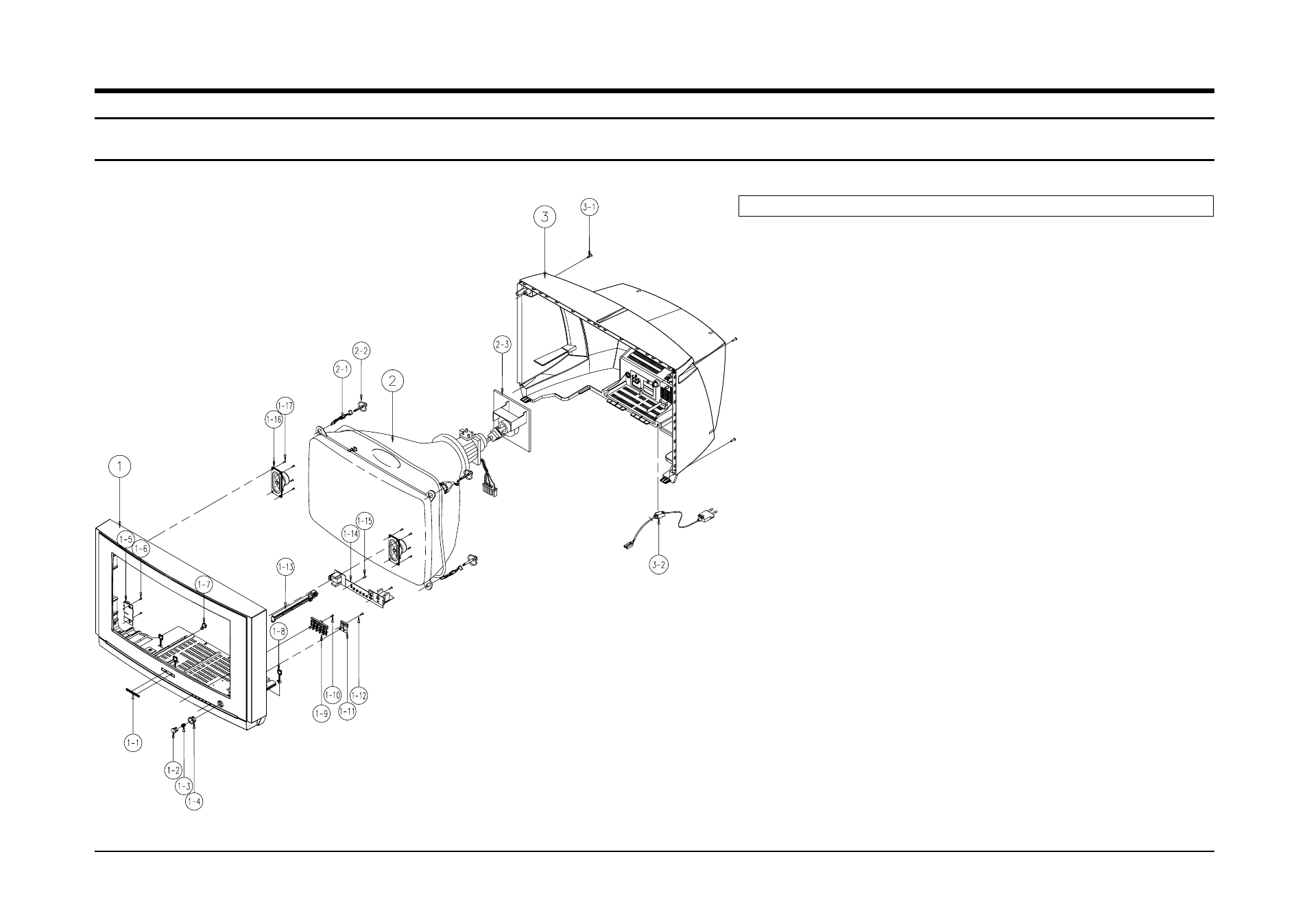

6. Exploded View & Parts List
6-1 WS28V53NS8XXEC(32V5)
Exploded View & Parts List
Samsung Electronics
6-1
No
Code No
Description;Specification
Q’ty Remark
S.N.A
1
HA91-05147D
ASSY CABINET FRONT;,28V5,KS3A,COR-PROT,H
1
1*
AA64-02996D
CABINET-FRONT;28V5,HIPS,HB,SV012P-II,COR
1
1-1
AA64-70117B
BADGE-BRAND;-,AL,-,-,L65,R2000,SILVER,SS
1
1-2
AA64-02999A
KNOB POWER;28/32V5,HIPS,HB,GRY
1
1-3
AA61-60003J
SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-,
1
1-4
AA64-03001A
DECORATION-POWER;28/32V5,HIPS,HB
1
1-5
AA95-01518A
ASSY ETC-PCB A/V BOARD;,29K8,KS3A,50HZ
1
1-6
6003-001019
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
2
CF+PCB
1-7
STOPPER-PCB
1-8
AA65-30105A
CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,
2
1-9
AA64-02998A
KNOB CONTROL;28/32V5,HIPS,HB,GRY
1
1-10
6003-001019
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
1
KC+CF
1-11
AA64-03002A
WINDOW-RMC,LED;28/32V5,PC,CLR
1
1-12
6003-001019
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
1
WR+CF
1-13
HA61-00711C
HOLDER-PCB;29K8,HIPS,HB,GRY
1
1-14
AA95-01752B
ASSY SUB-PCB CONTROL;29M6,KS3A,AA95-0140
1
1-15
6003-001019
SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
3
CF+PCB
1-16
3001-001005
SPEAKER;10W,8OHM,91DB,140HZ
2
1-17
6002-000515
SCREW-TAPPING;RH,+,2,M4,L15,ZPC(WHT),SWR
8
CF+SPK
2
HA94-01652A
ASSY CRT;-,-,28,ITC,W66EJU023X215,NON-
1
2-1
AA65-00009B
CLAMPER CORE-D,COIL;21A8,NYLON 66,V0,-,-
4
CRT
2-2
AA60-10050V
SCREW-ASSY;-,SWRCH18A,M6,L30,HH,+,WC,-,Z
4
CRT+CF
2-3
3704-000114
SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK
1
VA999
3
HA64-02530C
CABINET-BACK;28M6,VL-1823,GRY
1
3-1
6002-000515
SCREW-TAPPING;RH,+,2,M4,L15,ZPC(WHT),SWR
6
CB+CF
3-2
AA96-01126B
ASSY POWER CORD;DP,AA39-10001G,CP2,H/C40
1
