28
1 48717 Switch, Neutral Interlock x x
2 48946 Throttle Control x x
3 481687 Engagement Switch, Electric Clutch x x
4 48609 Key Switch (Includes hardware) x x
5 48023 Hour Meter (Dealer installed) x x
6 * Screw, #10-32 x .50 Phillips Washer Head x x
7 04019-01 Nut, #10-32 Serrated Flange Hex Head x x
8 481678 Handle Wire Harness, Manual Start x x
NS 48030-09 Clamp, Wire Harness x x
* Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated.

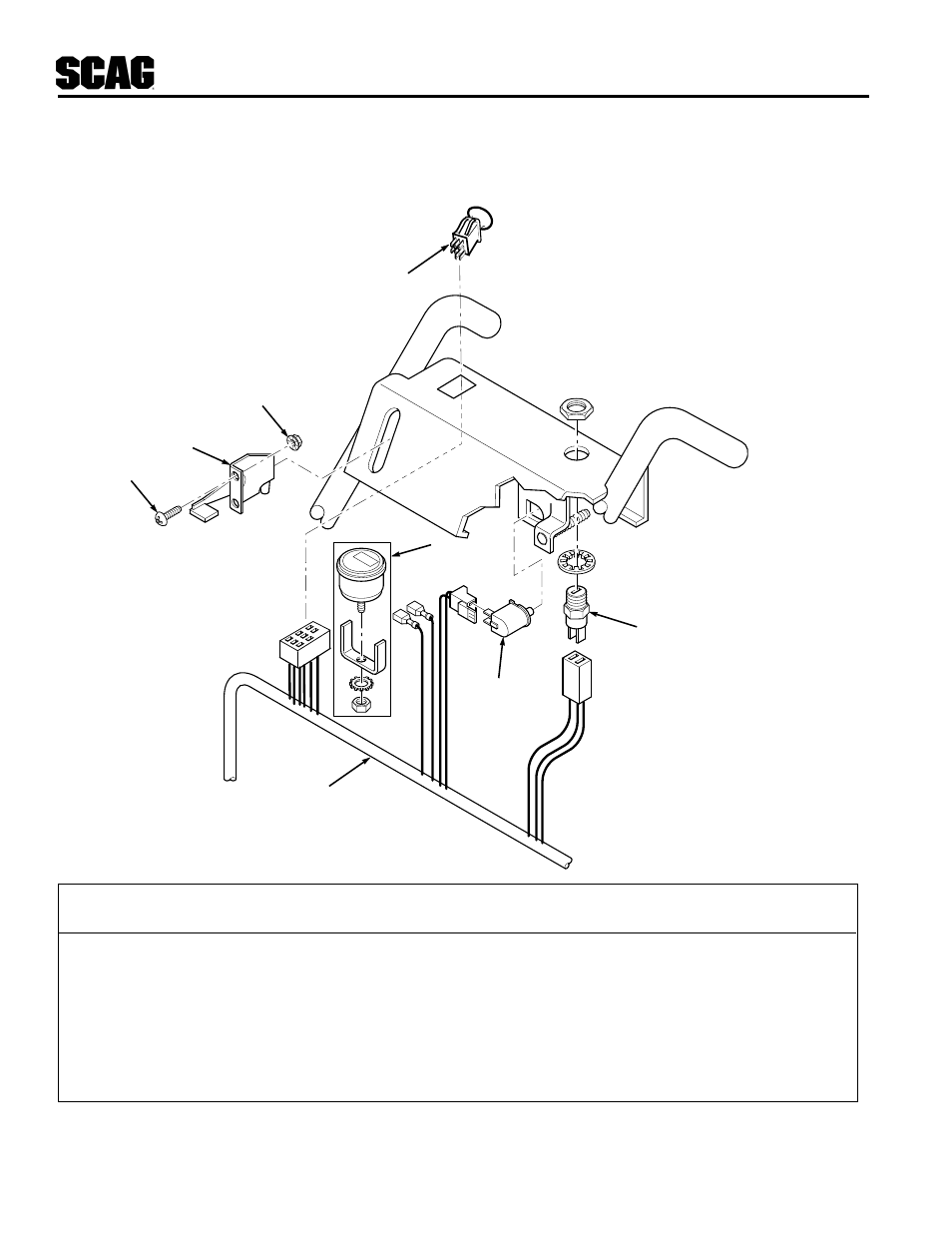

INSTRUMENT PANEL
SW99IP
4
6
2A
2B
7
5
1
3
8
Ref. Part
No. No.
Description
15KA 17KA
INSTRUMENT PANEL
