Chapter 5
25
Chapter 5, Operating the Alarm
This chapter describes the circumstances under which the alarm is on,
how to disable the alarm, the alarm input/output specifications, and
how to view the alarm list.
Alarm Input/Output Terminal Specification

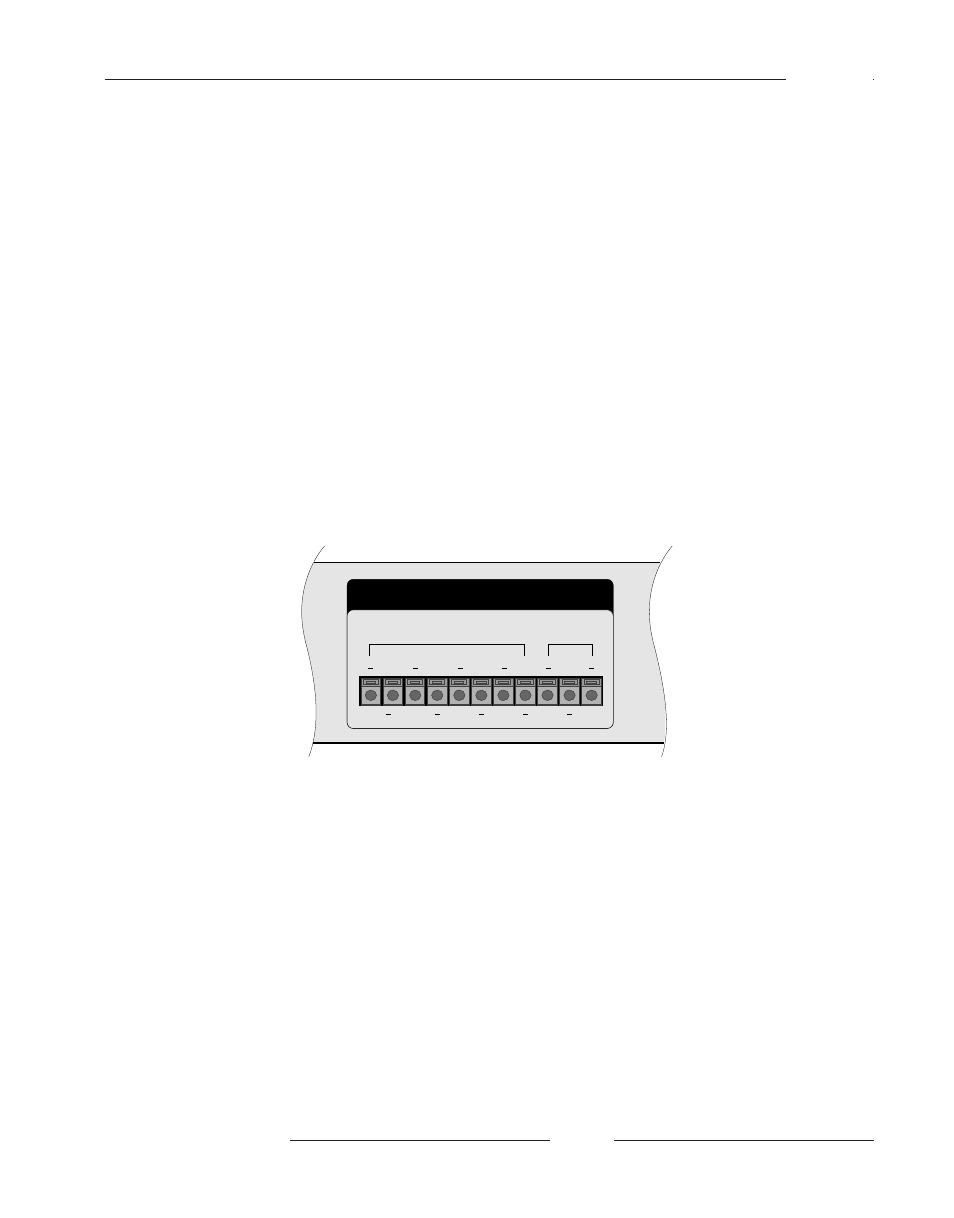

The following figure shows the alarm input/output terminal in the back
of the system.
• Alarm input terminal : 4 EA
• Alarm input GND : 4 EA
• Alarm output terminal : 1 EA
• Alarm reset output : 1 EA
• Alarm output/reset GND : 1 EA
ALARM IN/OUT
ALARM INPUT ALARM OUT
CH1 2 3 4 OUT GND
GND 1 2 3 4 RESET
