2-32 Chapter 2: Hardware information
9. Internal audio connectors (4-pin CD, AUX, MODEM)
(on audio models only)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card. The MODEM
connector allows the onboard audio to interface with a voice modem
card with a similar connector. It also allows the sharing of mono_in
(such as a phone) and a mono_out (such as a speaker) between the
audio and a voice modem card.

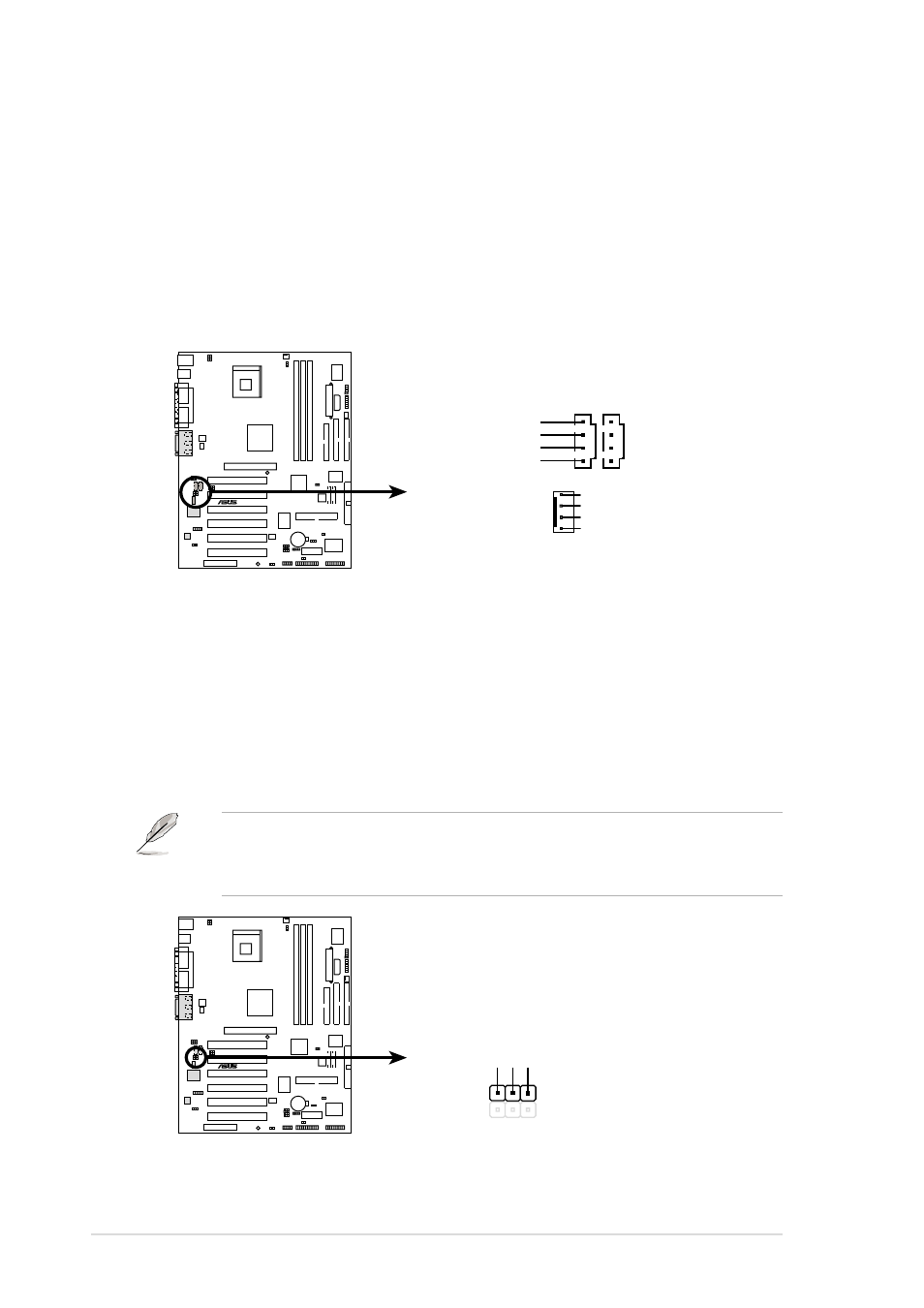

Figure 2-43 Internal Audio Connectors
®
P4B-E
P4B-E Internal Microphone Connector
INT_MIC
MIC Power
1 3
MIC Input Ground
10. Internal microphone connector (3-pin INT_MIC)
(on audio models only)
This connector connects to an optional front panel audio module using
a 3-pin audio cable. If your chassis has this audio module, you can
connect a microphone to the front panel connector .
The front panel microphone may not work properly when there is
another microphone connected to the Microphone (pink) jack on the
rear panel. You may only use one microphone at a time.
Figure 2-44 Internal Microphone Connector
®
P4B-E
P4B-E Internal Audio Connectors
CD (Black) AUX (White)
MODEM
Left Audio Channel
Right Audio Channel
Ground
Ground
Modem-Out
Ground
Modem-In
Ground
