Sample Sequencer 
Appendix F
SENTRY Equipment Corp • P. O. Box 127•Oconomowoc, WI 53066 • 262/567-7256 • FAX: 262/567-4523
Web: www.sentry-equip.com • e-mail: [email protected]
75
Sample Sequencer with dual point plug-in electronic Track & Hold, DCS, Recorder, Analyzer,
Configuration.
*In dual point mode:
Labeled Point #3 Provides same analog output as Point #1
Labeled Point #4 Provides same analog output as Point #2
Labeled Point #7 Provides same analog output as Point #5
Labeled Point #8 Provides same analog output as Point #6

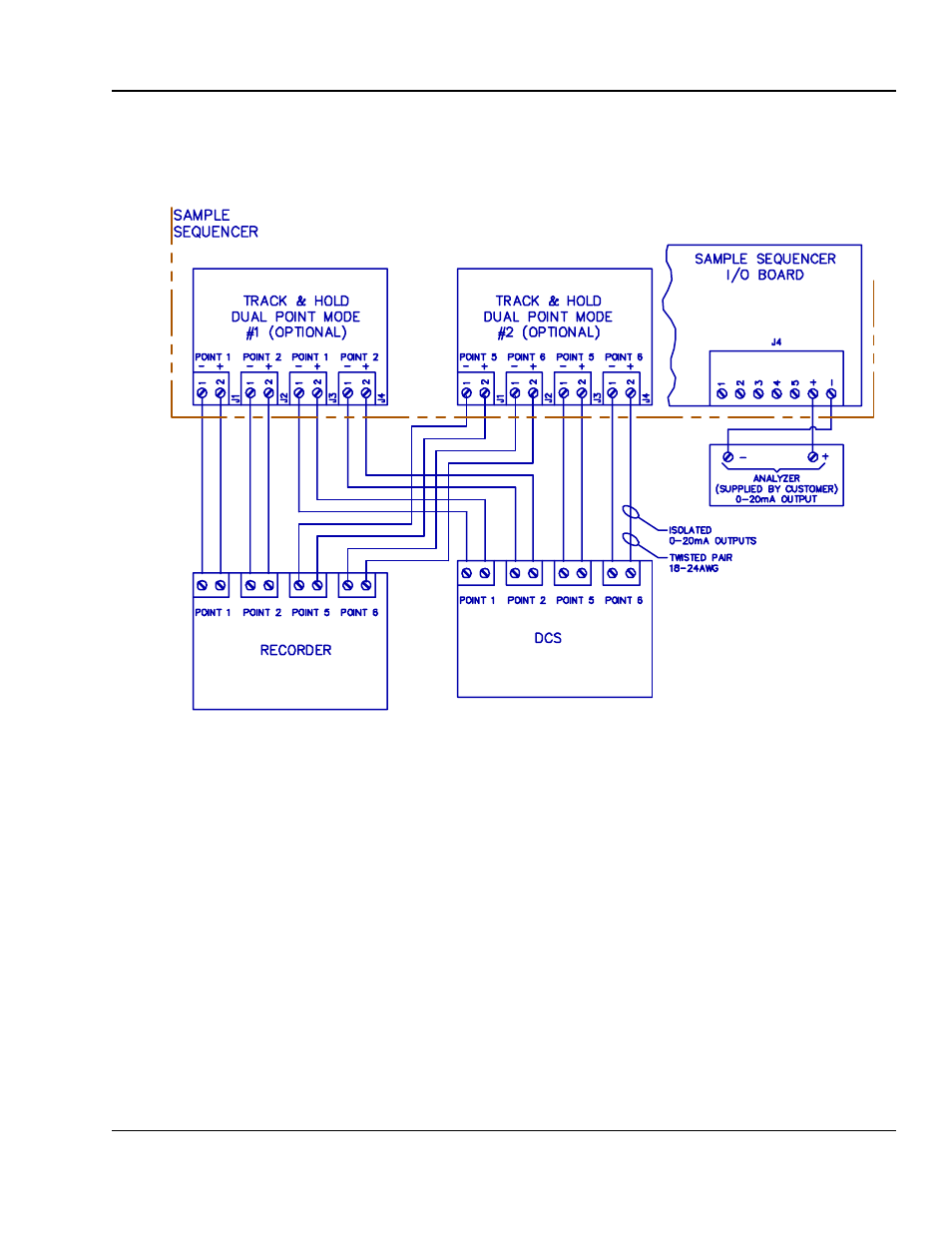

Figure F2 - Wiring Diagram - Dual Outputs from Plug-In Track & Hold Board
