Sample Sequencer
Installation
0-1 Volt Signal Output Board (6-02547E) is used to provide an analog signal of 0 to 1 Volt DC
indicating the current sample point number which is in Dwell. This optional board is used when the
recorder has insufficient channels to record the analog data from sequencing two or more sample
streams to one or more analyzers. (The recorder must have minimum two channels plus one extra
channel for each extra analyzer.) Figure 21 shows the wiring connections for a system using three
analyzers and a four-channel recorder.

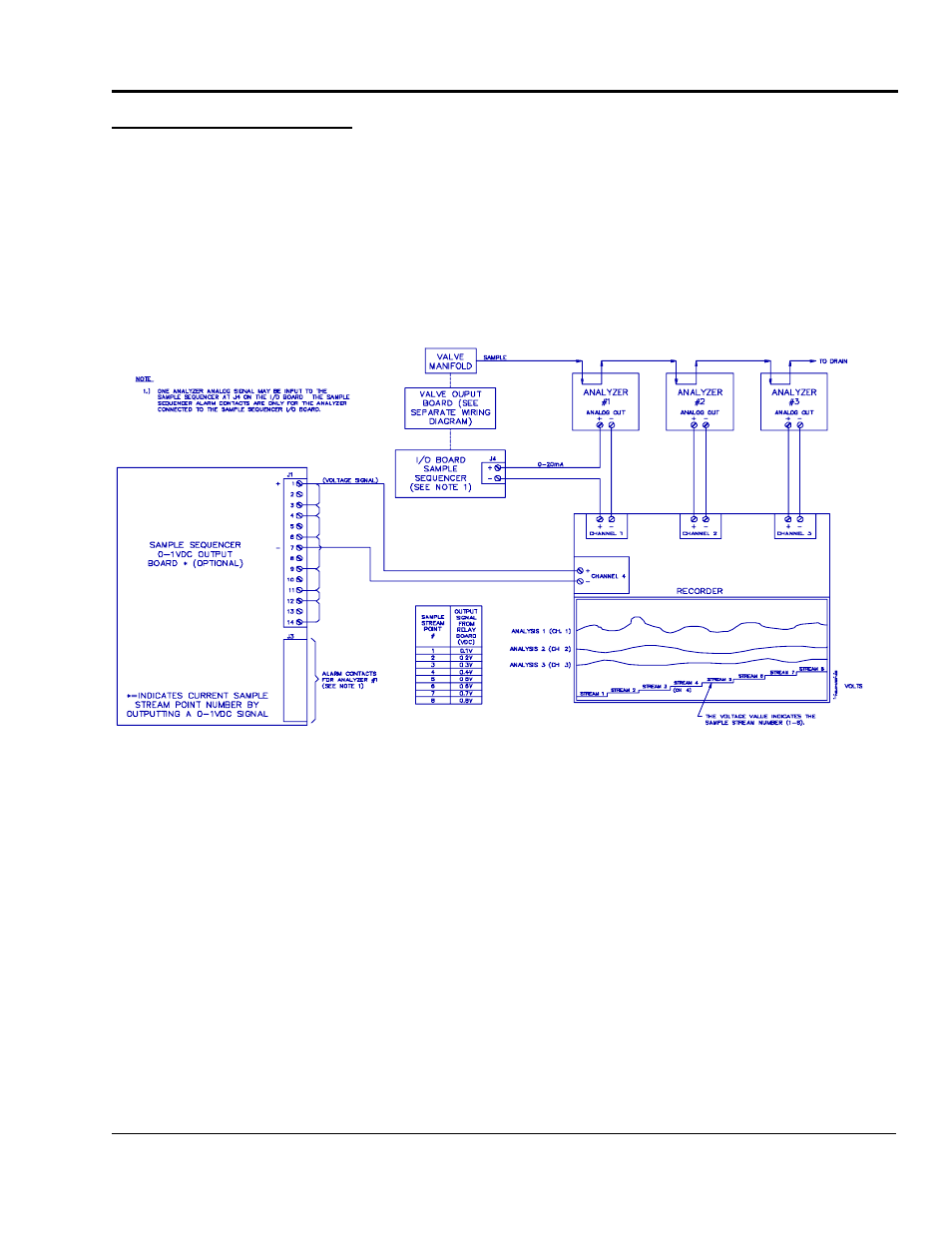

FIGURE 21 - Recorder Connections For One or More Analyzers
Using 0-1VDC Output Relay Board
