Using the Network Options Ethernet Tester
840 USE 115 00 Version 1.0 49
z
MAC Address.
z Status. The hex value displayed may be 0001, 8001 or C001:
Q 0001 indicates that the module is running, the Link indicator is not lit and
no entry exists in the crash log
Q 8001 indicates that module is running and the Link indicator is lit. No entry
exists in the crash log.
Q C001 indicates that the module is running, the Link indicator is lit and an
entry exists in the crash log.

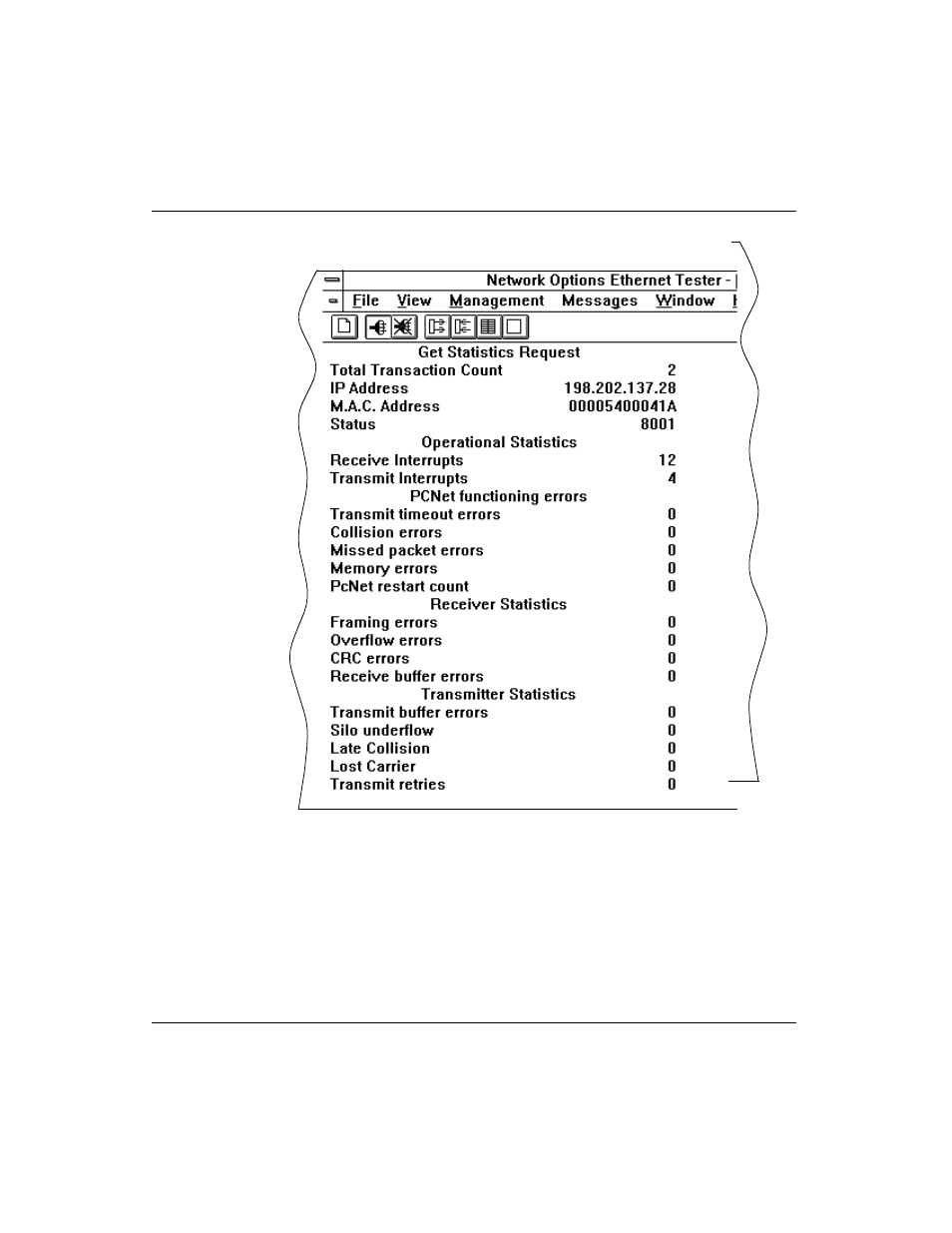

Figure 22 Sample Statistics
